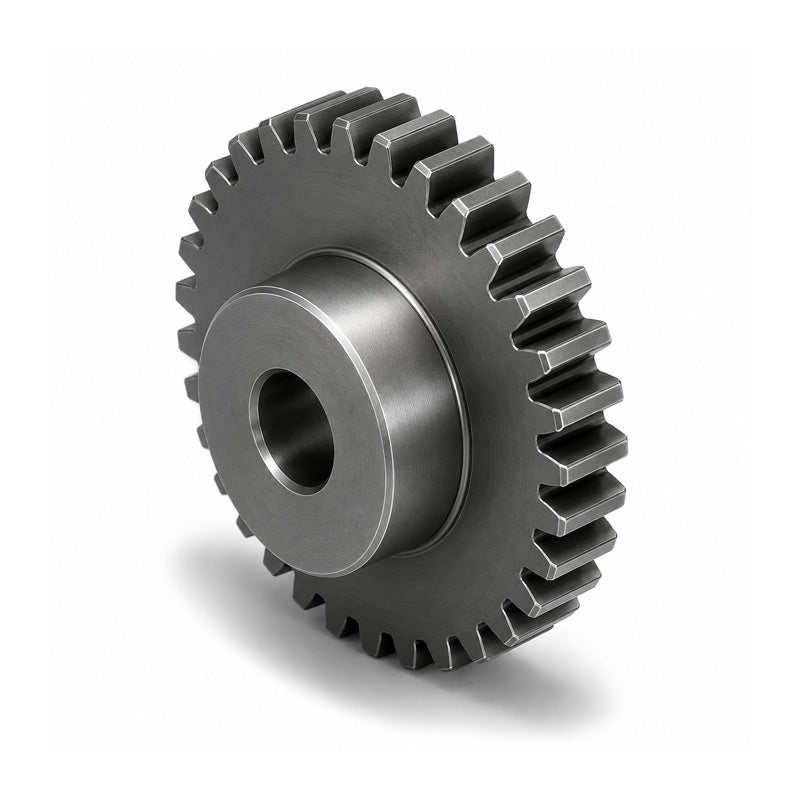

SS20DP/24B-0.375 Imperial EN8 Steel Spur Gear 24 Tooth 20 DP Bored 0.375 inch (H8)

Name: SS20DP/24B-0.375 Imperial EN8 Steel Spur Gear 24 Tooth 20 DP Bored 0.375 inch (H8)
Brand: Simply Bearings Ltd - Ball Bearings, Oil Seals, O-rings, V-Belts, SKF
SKU: SS20DP/24B-0.375_INCH
Price: 51.00 CHF
Availability: InStock

CHF 51.00 ex VAT

Sale Sold out

In stock

Price Break

5+ CHF 40.02

9+ CHF 37.78

19+ CHF 37.33

29+ CHF 36.88

49+ CHF 36.43

74+ CHF 35.98

99+ CHF 33.73

199+ CHF 33.28

249+ CHF 32.83

499+ CHF 32.38

999+ CHF 31.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

GEAR_IMP_S_DESC

Brand / Quality:: Drive-Flex - High Quality
Bore:: 9.53mm = 0.375 (3/8) inch
Number of Teeth:: 24
Variant:: Tooth Profile B
Pitch Circle Diameter:: 30.48mm = 1.2 inch
Gear Modulus:: 20DP

Technical

Number of Teeth	24
Pitch (dp)	1.2 inch
Bore (H8)	0.375 inch
Hub / Boss (dm)	0.75 inch
Outside (de)	1.3 inch
Width (A)	0.75 inch
Face Width (B)	0.375 inch
Modulus / Diametral Pitch DP	20 dp
Tolerance unless otherwise stated	+- 0.01 inch
Pressure Angle	20 degrees
