SKU: SP400-M3200

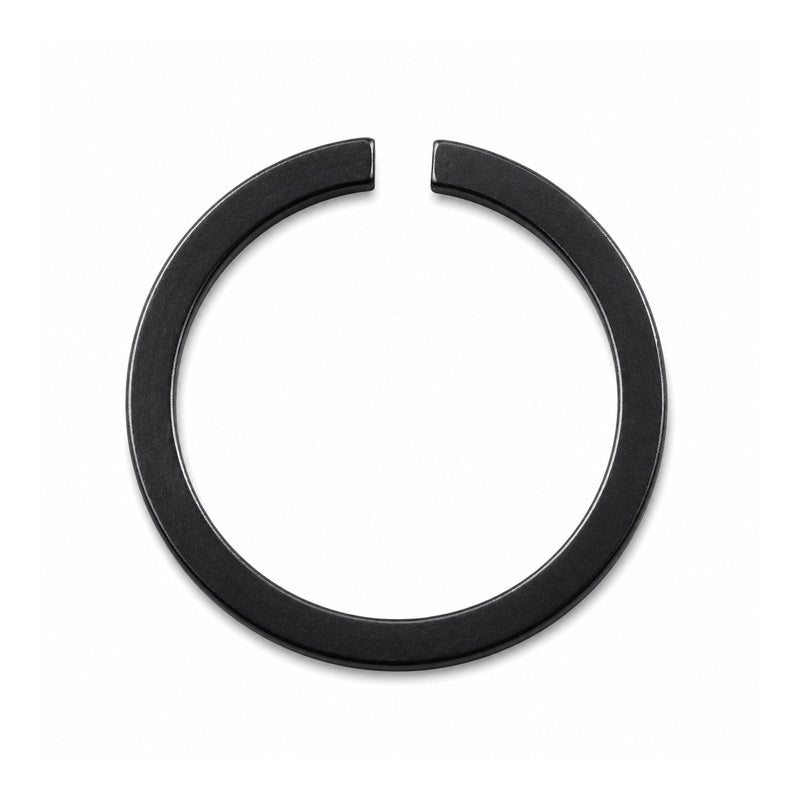

SP400 Snap Ring to Suit 400mm Outside Diameter of Bearing
SP400 Snap Ring to Suit 400mm Outside Diameter of Bearing
Equivalent to: DIN5417 DIN 5417 CBS400 CBS-400 3200-400 SP400 SP-400 M3200-400
Out of stock
Description
Description
|
Flat Wire Snap Rings for Ball and Roller Bearings: These retainers are designed to fit into a groove in the outer track of ball or roller bearings. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place. The snap rings are made from SAE 1065 carbon steel hardened to HRC 40-52 |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 383mm
- Shaft Size:
- 400mm
Technical
Technical
| d1 | 400mm |
|---|---|
| s | 4.5mm (Tolerance -0.2) |
| b | 12mm (Tolerance -0.30) |
| d3 | 383mm (Tolerance 3) |
| e approx | 10mm |
| r min | 1.5mm |
| d2 | 390mm (Tolerance -0.5) |
| m | 5.5mm (Tolerance 0.5) |
| C2 | 414mm |
| FN | 1040kN |
| FR | 144kN |
| g | 7 |
| FRg | 22.1kN |
| kN | 598mm |
| Max Rpm x1000 | 0.3 |
| Weight | 0.525g |
