SKU: SP380-M3200

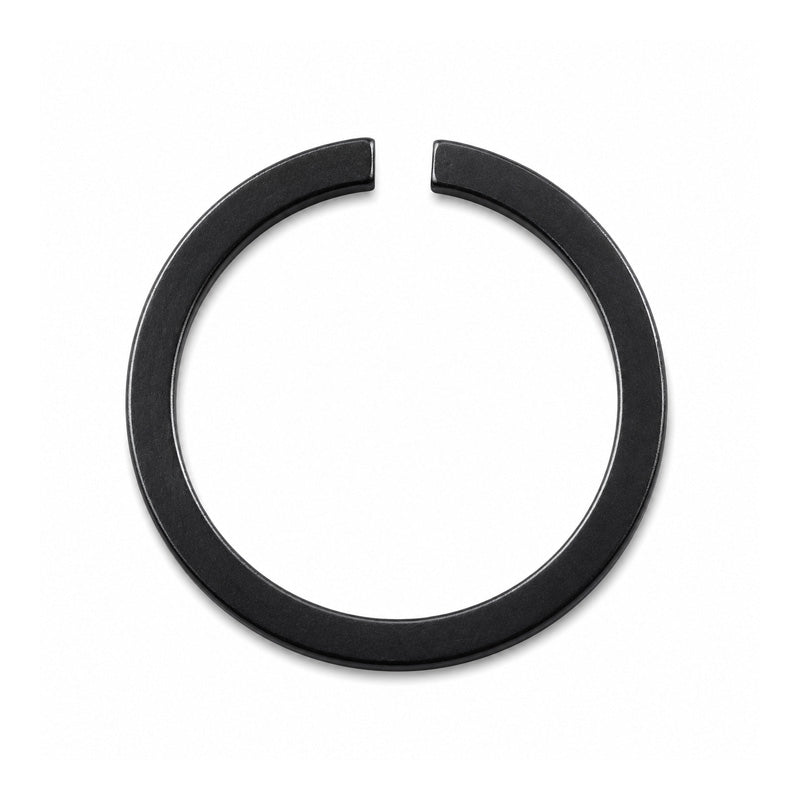

SP380 Snap Ring to Suit 380mm Outside Diameter of Bearing
SP380 Snap Ring to Suit 380mm Outside Diameter of Bearing
Equivalent to: DIN5417 DIN 5417 CBS380 CBS-380 3200-380 SP380 SP-380 M3200-380
Out of stock
Description
Description
|
Flat Wire Snap Rings for Ball and Roller Bearings: These retainers are designed to fit into a groove in the outer track of ball or roller bearings. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place. The snap rings are made from SAE 1065 carbon steel hardened to HRC 40-52 |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 363mm
- Shaft Size:
- 380mm
Technical
Technical
| d1 | 380mm |
|---|---|
| s | 4.5mm (Tolerance -0.2) |
| b | 12mm (Tolerance -0.30) |
| d3 | 363mm (Tolerance 3) |
| e approx | 10mm |
| r min | 1.5mm |
| d2 | 370mm (Tolerance -0.5) |
| m | 5.5mm (Tolerance 0.5) |
| C2 | 394mm |
| FN | 995kN |
| FR | 154kN |
| g | 7 |
| FRg | 23.2kN |
| kN | 629mm |
| Max Rpm x1000 | 0.4 |
| Weight | 0.5g |
