SKU: SP270-M3200

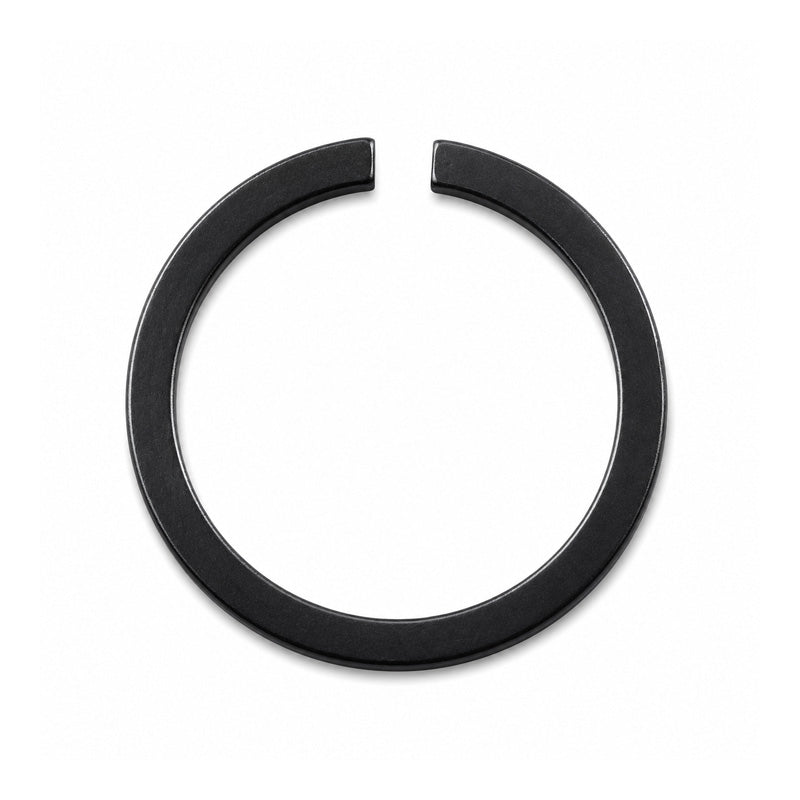

SP270 Snap Ring to Suit 270mm Outside Diameter of Bearing
SP270 Snap Ring to Suit 270mm Outside Diameter of Bearing
Equivalent to: DIN5417 DIN 5417 CBS270 CBS-270 3200-270 SP270 SP-270 M3200-270
Out of stock
Description
Description
|
Flat Wire Snap Rings for Ball and Roller Bearings: These retainers are designed to fit into a groove in the outer track of ball or roller bearings. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place. The snap rings are made from SAE 1065 carbon steel hardened to HRC 40-52 |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 257.5mm
- Shaft Size:
- 270mm
Technical
Technical
| d1 | 270mm |
|---|---|
| s | 3.5mm (Tolerance -0.1) |
| b | 10mm (Tolerance -0.30) |
| d3 | 257.5mm (Tolerance 2.5) |
| e approx | 10mm |
| r min | 1.2mm |
| d2 | 262mm (Tolerance -0.5) |
| m | 4.5mm (Tolerance 0.4) |
| C2 | 282mm |
| FN | 556kN |
| FR | 107kN |
| g | 6 |
| FRg | 14.9kN |
| kN | 347mm |
| Max Rpm x1000 | 0.5 |
| Weight | 0.24g |
