SKU: SP115-M3200

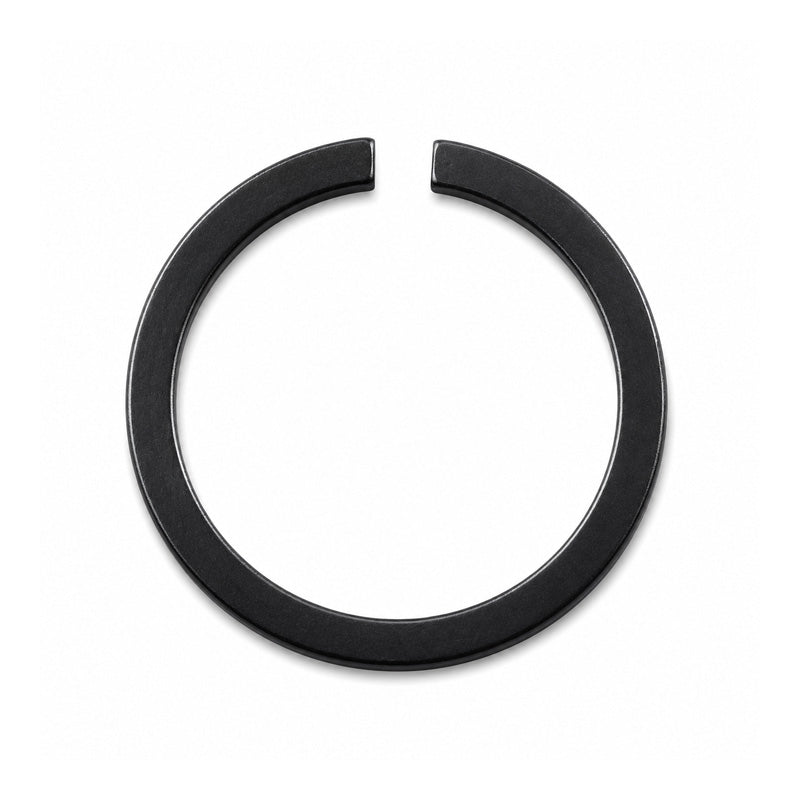

SP115 Snap Ring to Suit 115mm Outside Diameter of Bearing
SP115 Snap Ring to Suit 115mm Outside Diameter of Bearing
Equivalent to: DIN5417 DIN 5417 CBS115 CBS-115 3200-115 SP115 SP-115 M3200-115
Out of stock
Description
Description
|
Flat Wire Snap Rings for Ball and Roller Bearings: These retainers are designed to fit into a groove in the outer track of ball or roller bearings. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place. The snap rings are made from SAE 1065 carbon steel hardened to HRC 40-52 |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 110.2mm
- Shaft Size:
- 115mm
Technical
Technical
| d1 | 115mm |
|---|---|
| s | 2.46mm (Tolerance -0.1) |
| b | 4.85mm (Tolerance -0.15) |
| d3 | 110.2mm (Tolerance +1.0) |
| e approx | 5mm |
| r min | 0.7mm |
| d2 | 111.81mm (Tolerance -0.5) |
| m | 2.7mm (Tolerance 0.3) |
| C2 | 121.6mm |
| FN | 97.7kN |
| FR | 66.6kN |
| g | 3.5 |
| FRg | 10kN |
| kN | 136mm |
| Max Rpm x1000 | 1 |
| Weight | 0.0344g |
