SKU: SM-UCF205D1-NTN

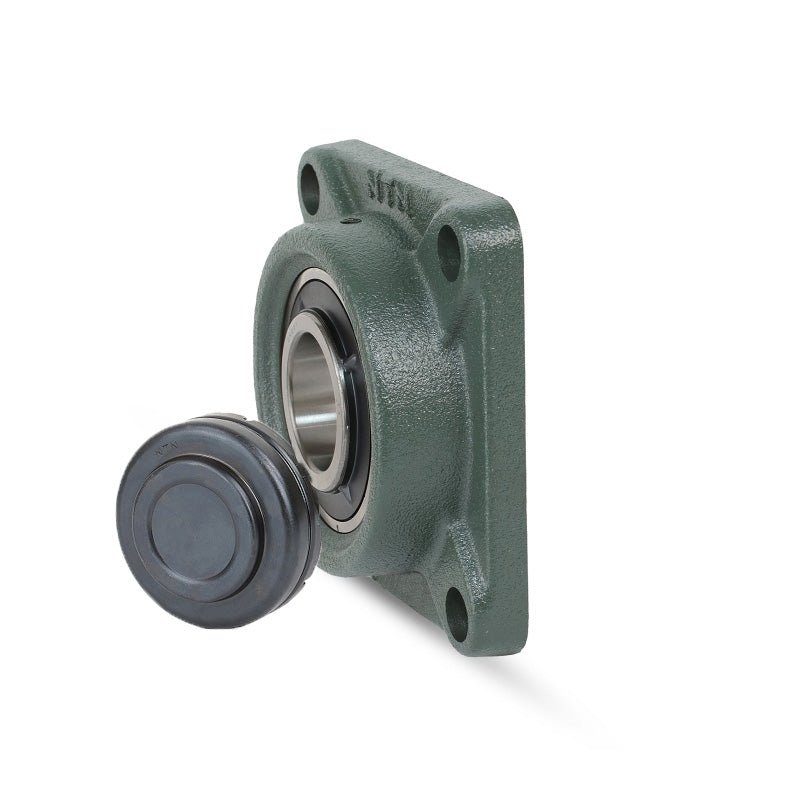

NTN SM-UCF205D1 Metric Four Bolt Square Cast Iron Flange Housing with 25mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
NTN SM-UCF205D1 Metric Four Bolt Square Cast Iron Flange Housing with 25mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Style:
- UCF
- Bolt Hole Centres:
- 70mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| L | 95mm |
| J | 70mm |
| A<sub>2</sub> | 16mm |
| A<sub>1</sub> | 13mm |
| A | 27mm |
| N | 12mm |
| B | 34.1mm |
| S | 14.3mm |
| t<sub>1</sub> | 7mm |
| A<sub>4</sub> | 44.5mm |
| Fixing bolt | M10 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 15.5 kN |
| Static load C<sub>0r</sub> | 7.85 kN |
| Fatigue load limit C<sub>u</sub> | 0.55 kN |
| --- | Unit information |
| Mass | 0.8 kg |
