SKU: SLC15/16-RHP

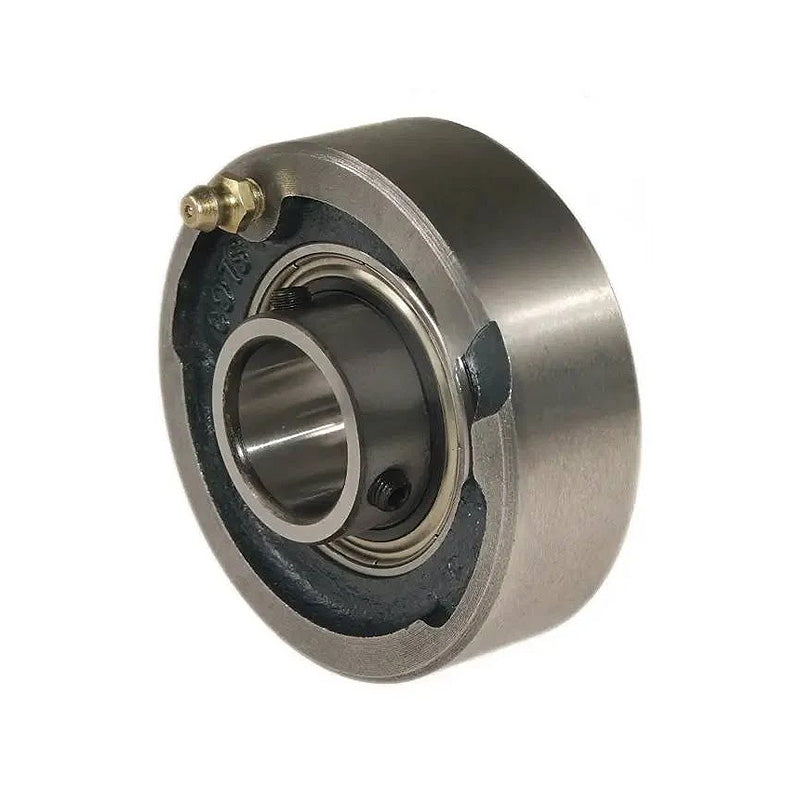

RHP SLC15/16 Cast Iron Cartridge Unit with 15/16 inch Bore Insert 79.4mm Outside Diameter

RHP SLC15/16 Cast Iron Cartridge Unit with 15/16 inch Bore Insert 79.4mm Outside Diameter

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 15/16 inch
L 3.126 inch
A 1.031 inch
A1 1.297 inch
B 1.343 inch
s 0.564 inch
d1 1.339 inch
Dynamic load Cr 14000 N
Static load Cor 7880 N
Rec max speed 6250 rpm
Weight 0.8 kg
Insert <a href="advanced_search_result.php?keywords=1025-15/16G+insonly">1025-15/16G Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
