SKU: SL65DEC-RHP

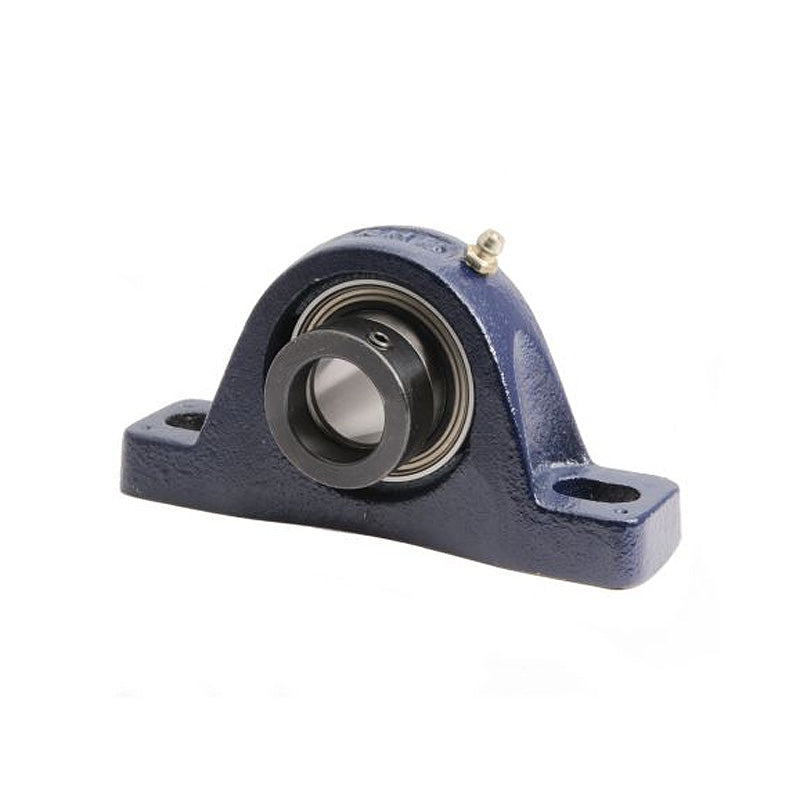

RHP SL65DEC Two Bolt Cast Iron Pillow Block and 65mm Bore Eccentric Collar Full Width Insert

RHP SL65DEC Two Bolt Cast Iron Pillow Block and 65mm Bore Eccentric Collar Full Width Insert

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 65mm
L 298.4mm
H 82.55mm
H1 34.9mm
H2 166.7mm
J max 242.9mm
J min 220.7mm
G 20mm
A 82.6mm
A1 55.6mm
B3 91.72mm
s2 37.37mm
d2 101.6mm
Dynamic load Cr 66000 N
Static load Cor 49500 N
Rec max speed 2300 rpm
Insert <a href="advanced_search_result.php?keywords=1075-65DECG+insonly">1075-65DECG Click Here</a>
Casting group 11
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
