SKU: SL226_IMP_NAK

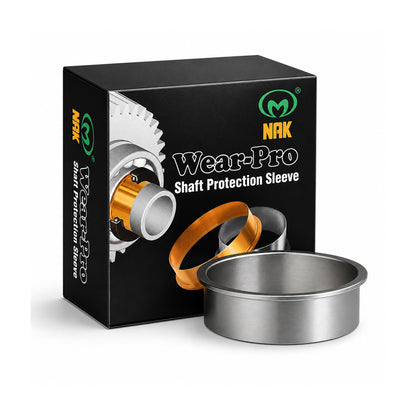

NAK SL226 Hardened Stainless Sleeve for Shafts 4.998-5.006 inch - Allow 7-10 Days
NAK SL226 Hardened Stainless Sleeve for Shafts 4.998-5.006 inch - Allow 7-10 Days
Regular price
CHF 52.00
ex VAT
Regular price
Sale price
CHF 52.00
ex VAT
Equivalent to: CR99498
In stock
Price Break
10+
CHF 40.97
19+
CHF 38.66
29+
CHF 38.20
39+
CHF 37.74
49+
CHF 37.28
74+
CHF 36.82
99+
CHF 34.52
199+
CHF 34.06
249+
CHF 33.60
499+
CHF 33.14
999+
CHF 32.22
Quantity
Couldn't load pickup availability
Description
Description
NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.874 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 5 inch
- Flange Diameter:
- 5.402 inch
Technical
Technical
| Shaft Diameter Range (A) | 4.998-5.006 inch |
|---|---|
| Nominal Shaft Diameter (A) | 5 inch |
| Flange Diameter (D) | 5.402 inch |
| Width on Shaft (X) | 0.689 inch |
| Overall Width (Y) | 0.874 inch |
| Installation Depth (Z) | 1.437 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
