SKU: SL1.5/8-RHP
RHP SL1-5/8 Two Bolt Cast Iron Pillow Block and 1-5/8 Bore Grub Screw Full Width Insert
RHP SL1-5/8 Two Bolt Cast Iron Pillow Block and 1-5/8 Bore Grub Screw Full Width Insert
Regular price
CHF 82.00
ex VAT
Regular price
Sale price
CHF 82.00
ex VAT
In stock
Price Break
10+
CHF 65.12
20+
CHF 61.46
30+
CHF 60.73
40+
CHF 59.99
50+
CHF 59.26
75+
CHF 58.53
100+
CHF 54.87
200+
CHF 54.14
250+
CHF 53.41
500+
CHF 52.68
1000+
CHF 51.21
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SL Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Style:
- SL
- Bolt Hole Centres:
- 5.571-6.358 inch

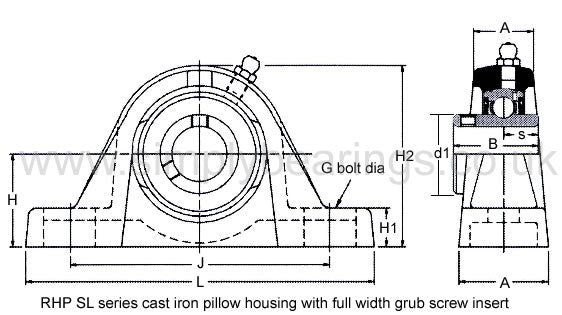

Technical
Technical
| Bore | 1-5/8 inch |
|---|---|
| L | 7.776 inch |
| H | 2.062 inch |
| H1 | 0.724 inch |
| H2 | 4.189 inch |
| J max | 6.358 inch |
| J min | 5.571 inch |
| G | 0.5 inch |
| A | 2.126 inch |
| A1 | 1.378 inch |
| B | 1.938 inch |
| s | 0.752 inch |
| s1 | 0.435 inch |
| d1 | 2.256 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1045-1-5/8G+insonly">1045-1-5/8G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
