SKU: SL1.1/4DECR-RHP

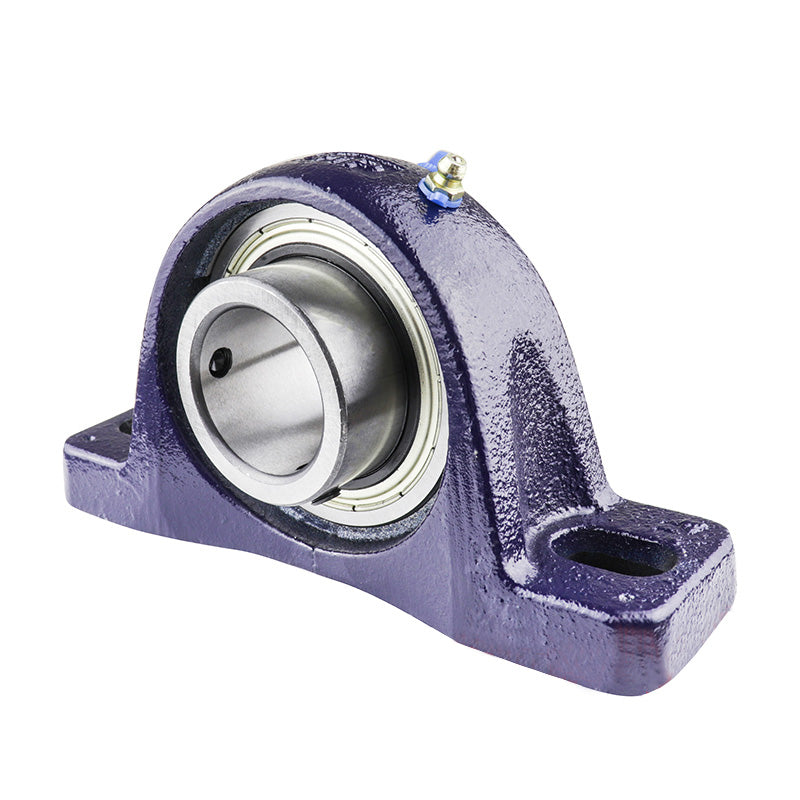

RHP SL1-1/4DECR Two Bolt Cast Iron Pillow Block and 1-1/4 Bore Eccentric Collar Full Width Insert

RHP SL1-1/4DECR Two Bolt Cast Iron Pillow Block and 1-1/4 Bore Eccentric Collar Full Width Insert

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-1/4 inch
L 6.358 inch
H 1.562 inch
H1 0.571 inch
H2 3.13 inch
J max 5.118 inch
J min 4.291 inch
G 0.5 inch
A 1.614 inch
A1 1.083 inch
B3 1.906 inch
s2 0.721 inch
d2 1.75 inch
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Insert <a href="advanced_search_result.php?keywords=1030-1-1/4DECG+insonly">1030-1-1/4DECG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
