SKU: SL1.1/4DEC-RHP

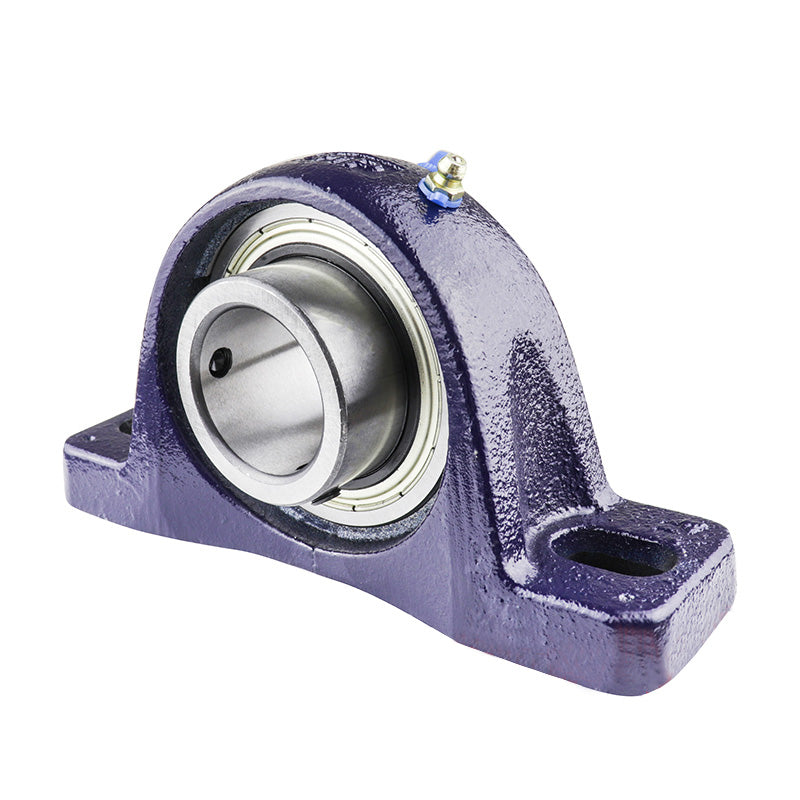

RHP SL1-1/4DEC Two Bolt Cast Iron Pillow Block and 1-1/4 Bore Eccentric Collar Full Width Insert

RHP SL1-1/4DEC Two Bolt Cast Iron Pillow Block and 1-1/4 Bore Eccentric Collar Full Width Insert
Regular price CHF 74.00 ex VAT
Regular price Sale price CHF 74.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 59.05
20+ CHF 55.74
30+ CHF 55.07
40+ CHF 54.41
50+ CHF 53.75
75+ CHF 53.08
100+ CHF 49.76
200+ CHF 49.10
250+ CHF 48.44
500+ CHF 47.77
1000+ CHF 46.45
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

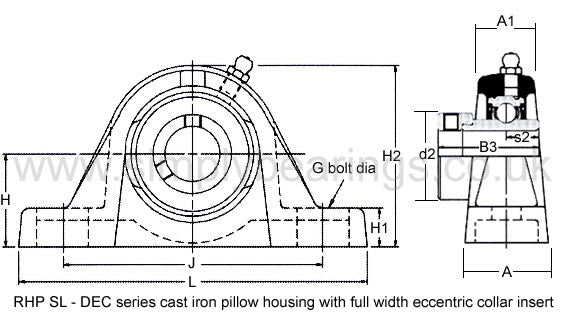

Bore 1-1/4 inch
L 6.535 inch
H 1.812 inch
H1 0.63 inch
H2 3.602 inch
J max 5.374 inch
J min 4.783 inch
G 0.5 inch
A 1.752 inch
A1 1.201 inch
B3 2.015 inch
s2 0.744 inch
d2 2.188 inch
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Insert <a href="advanced_search_result.php?keywords=1035-1-1/4DECG+insonly">1035-1-1/4DECG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
