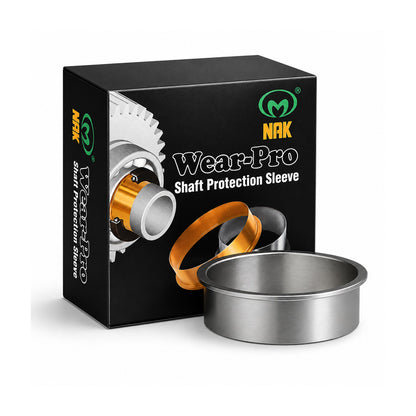

NAK SL022 Hardened Stainless Sleeve for Shafts 0.966-0.970 inch - Allow 7-10 Days
NAK SL022 Hardened Stainless Sleeve for Shafts 0.966-0.970 inch - Allow 7-10 Days
Regular price
CHF 25.00
ex VAT
Regular price
Sale price
CHF 25.00
ex VAT
Equivalent to: CR99094
In stock
Price Break
10+
CHF 20.00
19+
CHF 18.87
29+
CHF 18.65
39+
CHF 18.42
49+
CHF 18.20
74+
CHF 17.97
99+
CHF 16.85
199+
CHF 16.63
249+
CHF 16.40
499+
CHF 16.18
999+
CHF 15.73
Quantity
Couldn't load pickup availability
Description
Description
NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.437 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 0.969 inch
- Flange Diameter:
- 1.13 inch
Technical
Technical
| Shaft Diameter Range (A) | 0.966-0.970 inch |
|---|---|
| Nominal Shaft Diameter (A) | 0.969 inch |
| Flange Diameter (D) | 1.13 inch |
| Width on Shaft (X) | 0.315 inch |
| Overall Width (Y) | 0.437 inch |
| Installation Depth (Z) | 2 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
