SKU: SL005_IMP_NAK
NAK SL005 Hardened Stainless Sleeve for Shafts 0.589-0.593 inch - Allow 7-10 Days
NAK SL005 Hardened Stainless Sleeve for Shafts 0.589-0.593 inch - Allow 7-10 Days
Regular price
CHF 24.00
ex VAT
Regular price
Sale price
CHF 24.00
ex VAT
Equivalent to: CR99059
In stock
Price Break
10+
CHF 18.51
19+
CHF 17.47
29+
CHF 17.26
39+
CHF 17.06
49+
CHF 16.85
74+
CHF 16.64
99+
CHF 15.60
199+
CHF 15.39
249+
CHF 15.18
499+
CHF 14.98
999+
CHF 14.56
Quantity
Couldn't load pickup availability
Description
Description

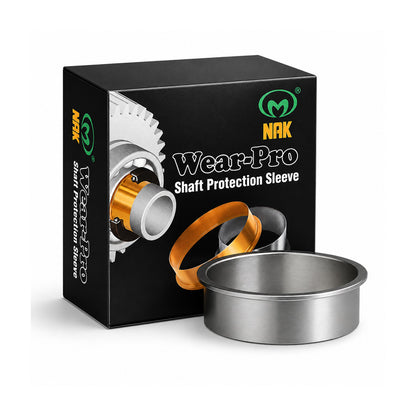

NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.354 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 0.591 inch
- Flange Diameter:
- 0.752 inch
Technical
Technical
| Shaft Diameter Range (A) | 0.589-0.593 inch |
|---|---|
| Nominal Shaft Diameter (A) | 0.591 inch |
| Flange Diameter (D) | 0.752 inch |
| Width on Shaft (X) | 0.197 inch |
| Overall Width (Y) | 0.354 inch |
| Installation Depth (Z) | 1.862 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
