SKU: SK100-206-KRR-B-AH11-INA

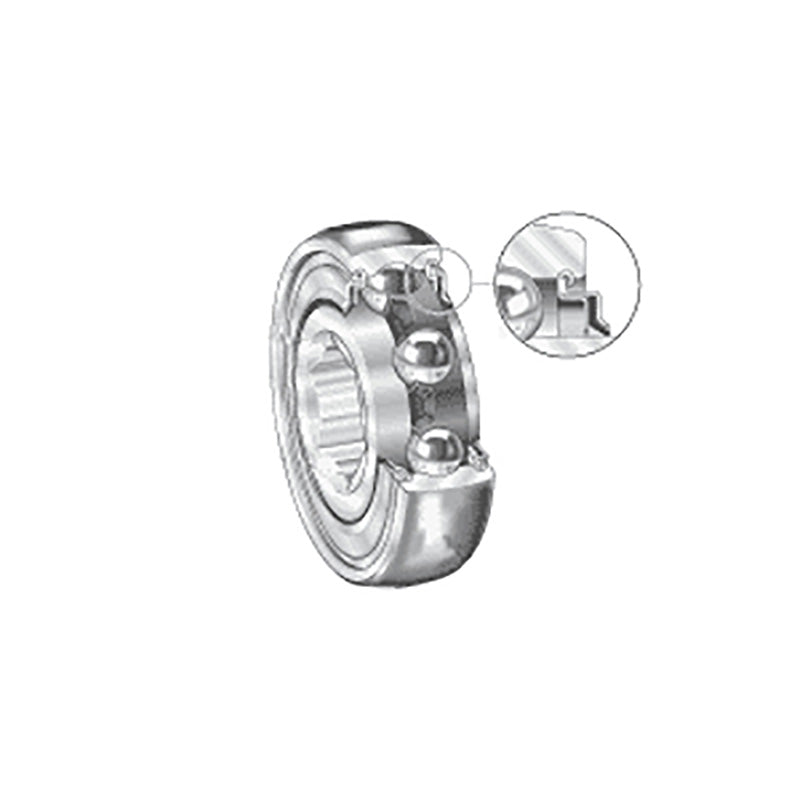

INA SK100206KRRBAH11 Metric Spherical Outer Hexagonal Bore Bearing Insert with R Seals 25.4mm Bore
INA SK100206KRRBAH11 Metric Spherical Outer Hexagonal Bore Bearing Insert with R Seals 25.4mm Bore
Out of stock
Description
Description
|
INA SK..-KRR-B Series Inserts: Bearing insert with spherical outer race, hexagonal bore and R seals. Bearings with a profiled bore are used where shafts must transmit very high torques and this is only possible using square or hexagonal shafts. Rotation is prevented by the geometrical locking effect. These bearings have a Corrotect® coating. Operating temperature range: -20 deg C to +120 deg C. Benefits: Compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 62mm
- Width:
- 24mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 25.4mm |
|---|---|
| d | 1 inch |
| Tolerance | +0.15 / +0.03 |
| Dsp | 62mm |
| B | 24mm |
| C | 16mm |
| C2 | 18.7mm |
| D1 | 52mm |
| d1 | 40.2mm |
| F | 30.5mm |
| r | 0.13mm |
| Limiting speed nG Fett | 800 rpm |
| Dynamic load Cr | 19500 N |
| Static load C0r | 11300 N |
| Weight | 0.32 kg |
