SKU: SIA45TXE-2LS-SKF

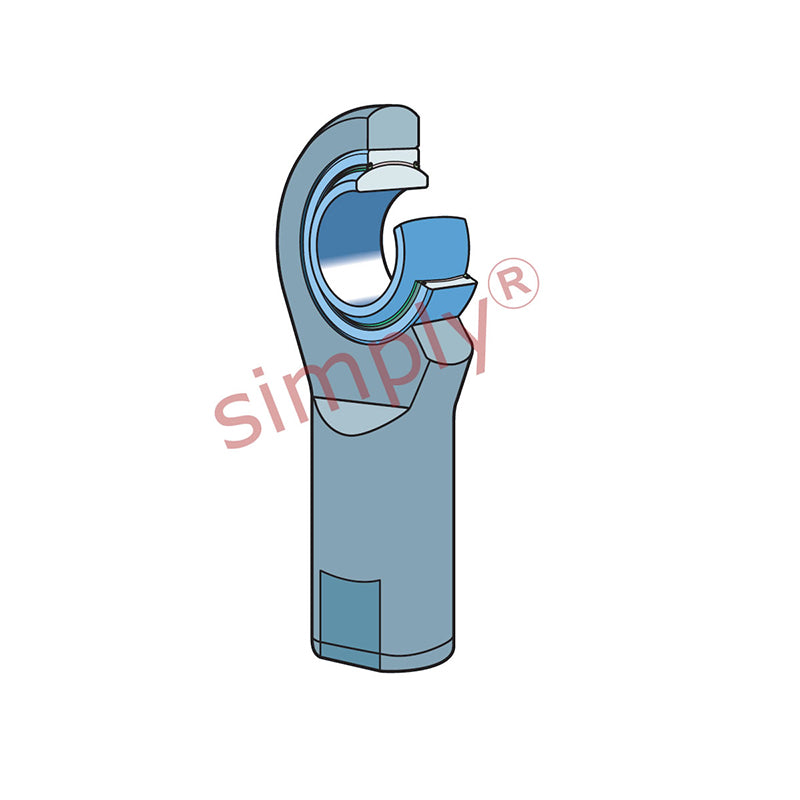

SKF SIA45TXE2LS Right Hand Steel / PTFE Fabric Lined Plain Female Rod End M42x3 Thread
SKF SIA45TXE2LS Right Hand Steel / PTFE Fabric Lined Plain Female Rod End M42x3 Thread
Regular price
CHF 427.00
ex VAT
Regular price
Sale price
CHF 427.00
ex VAT
In stock
Price Break
10+
CHF 341.01
19+
CHF 321.85
29+
CHF 318.02
39+
CHF 314.19
49+
CHF 310.35
74+
CHF 306.52
99+
CHF 287.36
199+
CHF 283.53
249+
CHF 279.70
499+
CHF 275.87
999+
CHF 268.21
Quantity
Couldn't load pickup availability
Description
Description
SIATXE_DESC
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M42x3
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 45mm
- Material:
- PTFE Fabric Lined

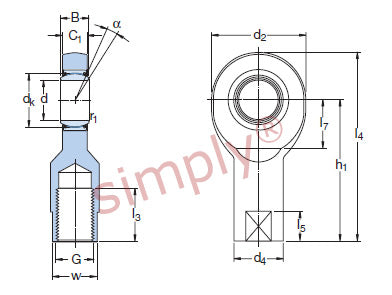

Technical
Technical
| d | 45mm |
|---|---|
| d2 max | 104mm |
| G 6H | M42x3 |
| B | 32mm |
| C1 max | 28mm |
| h1 | 145mm |
| a | 7deg |
| Dynamic load C | 360 kN |
| Static load Co | 224 kN |
| Weight | 2.9 kg |
| dk | 60mm |
| d4 | 65mm |
| l3 min | 65mm |
| l4 max | 199mm |
| l5 | 30mm |
| l7 min | 50mm |
| r1 min | 0.6mm |
| w h14 | 55mm |
