SKU: SG045AR0

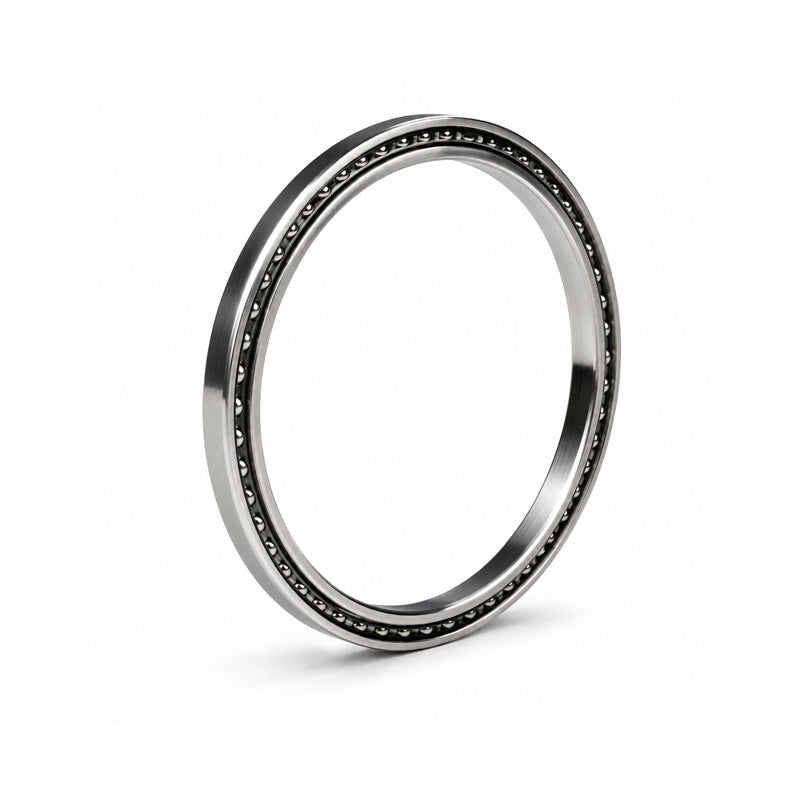

Silverthin SG045AR0 Thin Section Angular Contact Ball Bearing 4.5x6.5x1 inch - Allow 7-10 Days
Silverthin SG045AR0 Thin Section Angular Contact Ball Bearing 4.5x6.5x1 inch - Allow 7-10 Days
Equivalent to: KG045AR0
Out of stock
Description
Description
|
Silverthin Thin Section Angular Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed to accommodate axial loads. These bearing also support moment loads and reversing axial loads when used in pairs. These bearings also work well in radial or combined radial-thrust applications. Made from 52100 chrome steel and contains a brass circular pocket separator. Benefits: Compact, lightweight, accommodates radial and axial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 114.3mm = 4-1/2 inch
- Outside Diameter:
- 165.1mm = 6-1/2 inch
- Width:
- 25.4mm = 1 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical

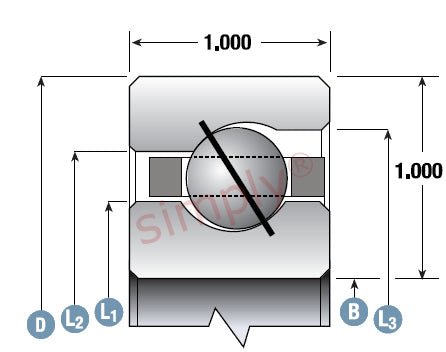

| B | 4.5 inch |
|---|---|
| D | 6.5 inch |
| Width | 1 inch |
| L1 | 5.242 inch |
| L2 | 5.758 inch |
| L3 | 5.989 inch |
| Static Radial Load | 46.395 kN |
| Dynamic Radial Load | 22.383 kN |
| Static Thrust Load | 133.909 kN |
| Dynamic Thrust Load | 64.673 kN |
| Weight | 1.8144kg |
