SKU: SFT1.3/4A-RHP

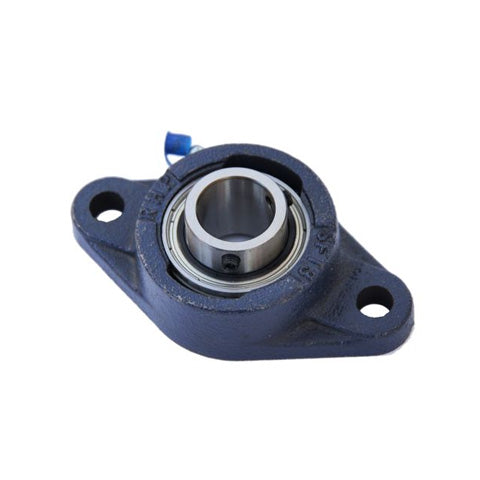

RHP SFT1-3/4A Two Bolt Oval Cast Iron Flange Housing 1-3/4 inch Bore Insert

RHP SFT1-3/4A Two Bolt Oval Cast Iron Flange Housing 1-3/4 inch Bore Insert

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

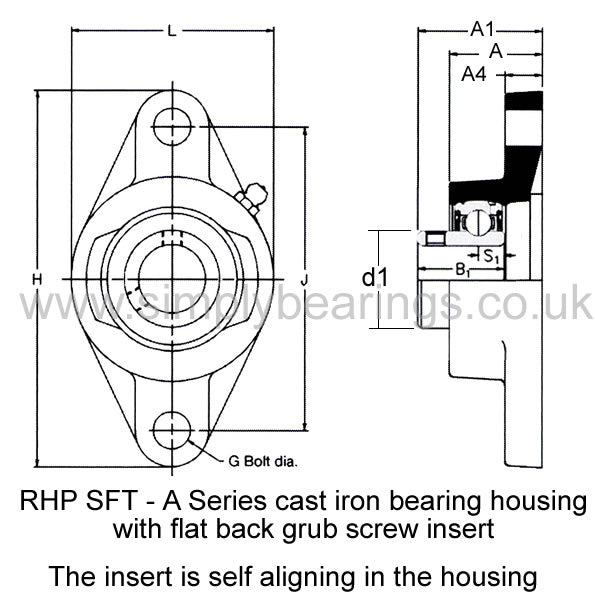

Bore 1-3/4 inch
L 4.374 inch
H 7.063 inch
J 5.846 inch
G 0.625 inch
A 1.39 inch
A1 2.133 inch
A4 0.563 inch
B1 1.621 inch
s1 0.435 inch
d1 2.256 inch
Dynamic load Cr 32500 N
Static load Cor 20500 N
Rec max speed 3700 rpm
Weight 2.2 kg
Insert <a href="advanced_search_result.php?keywords=1245-1-3/4AG+insonly">1245-1-3/4AG Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
