SKU: SFT1.11/16-RHP

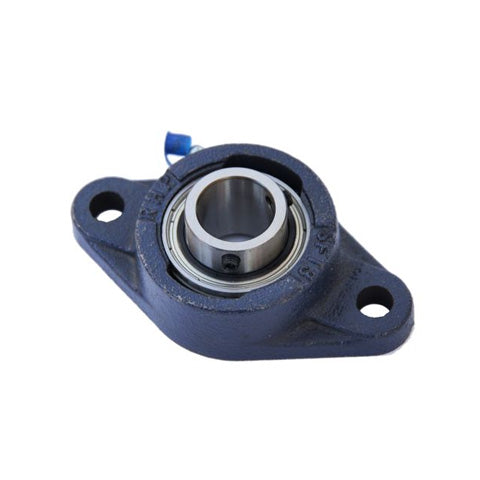

RHP SFT1-11/16 Two Bolt Oval Cast Iron Flange Housing 1-11/16 inch Bore Insert
RHP SFT1-11/16 Two Bolt Oval Cast Iron Flange Housing 1-11/16 inch Bore Insert
Regular price
CHF 82.00
ex VAT
Regular price
Sale price
CHF 82.00
ex VAT
In stock
Price Break
10+
CHF 65.12
20+
CHF 61.46
30+
CHF 60.73
40+
CHF 59.99
50+
CHF 59.26
75+
CHF 58.53
100+
CHF 54.87
200+
CHF 54.14
250+
CHF 53.41
500+
CHF 52.68
1000+
CHF 51.21
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Style:
- SFT
- Bolt Hole Centres:
- 148.49mm = 5.846 inch

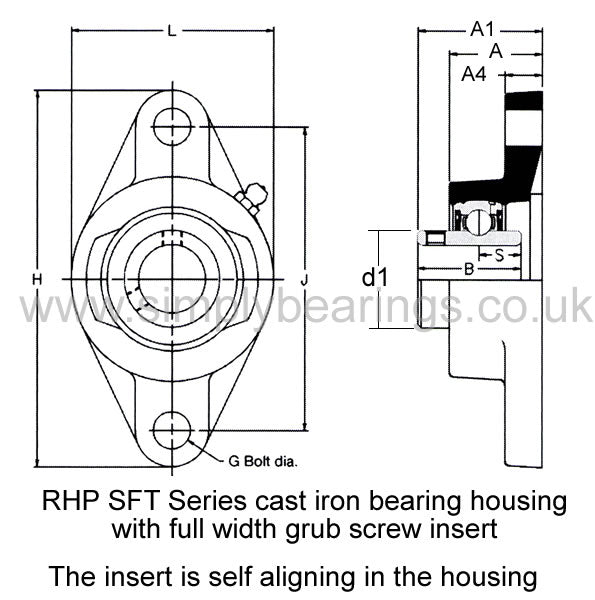

Technical
Technical
| Bore | 1-11/16 inch |
|---|---|
| L | 4.374 inch |
| H | 7.063 inch |
| J | 5.846 inch |
| G | 0.625 inch |
| A | 1.39 inch |
| A1 | 2.133 inch |
| A4 | 0.563 inch |
| B | 1.938 inch |
| s | 0.752 inch |
| d1 | 2.256 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-1-11/16G+insonly">1045-1-11/16G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
