SKU: SFT1.1/4DECR-RHP

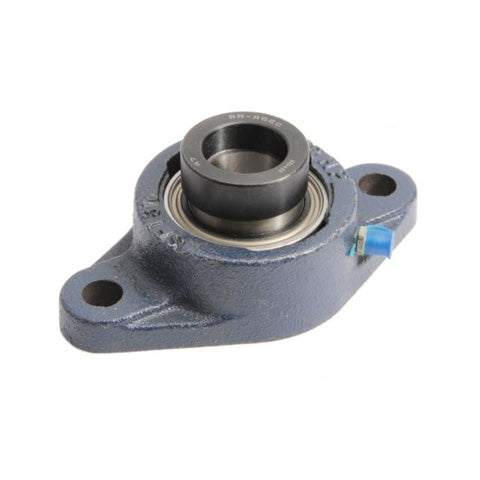

RHP SFT1-1/4DECR Two Bolt Oval Cast Iron Flange Housing 1-1/4 inch Bore Insert

RHP SFT1-1/4DECR Two Bolt Oval Cast Iron Flange Housing 1-1/4 inch Bore Insert

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-1/4 inch
L 3.252 inch
H 5.563 inch
J 4.587 inch
G 0.4375 inch
A 1.173 inch
A3 1.972 inch
A4 0.5 inch
B3 1.906 inch
s2 0.721 inch
d2 1.75 inch
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.1 kg
Insert <a href="advanced_search_result.php?keywords=1030-1-1/4DECG+insonly">1030-1-1/4DECG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
