SKU: SFH-112-A-IKO

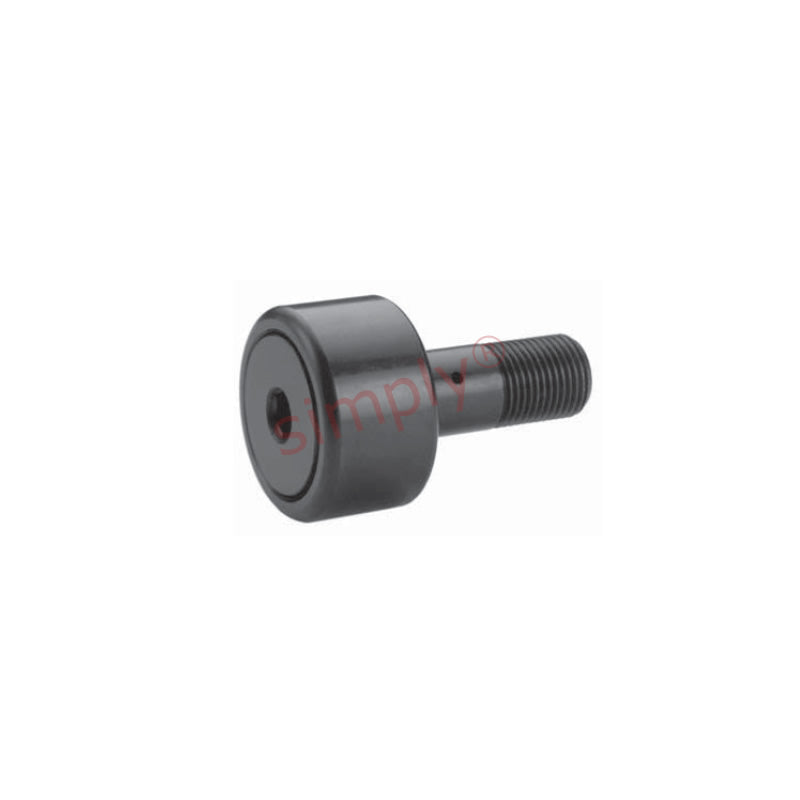

IKO SFH112A Hex Head Cylindrical Cam Follower 3-1/2 inch Outside Diameter Allow 7-10 Days
IKO SFH112A Hex Head Cylindrical Cam Follower 3-1/2 inch Outside Diameter Allow 7-10 Days
Out of stock
Description
Description
|
Cam Follower: These bearings are particularly well suited to applications with light to moderate loads operating at medium to higher speeds. These bearings feature continuous self-lubrication benefiting applications where lubricating the bearing is inconvenient, difficult or even impossible, or where dirt, dust or other contaminants can seep in causing needle, roller or ball bearings to seize up. Benefits: Continuous self-lubrication, clean lubrication, trouble-free in high humidity applications. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Width:
- 50.8mm = 2 inch
- Pitch:
- UNF 1-3/8-12
Technical
Technical
| A | 3.5 inch |
|---|---|
| B | 2 inch |
| C | 1.375 inch |
| D | 2.75 inch |
| E | 1-3/8 inch |
| Thread class 2A F | 1-3/8-12 UNF |
| H | 1/2 inch |
| Load factor | 2.7 inch |
| Min boss | 1-59/64 inch |
| Housing bore | 1.375 inch |
| Recommended clamping torque | 4200 lbs |
