SKU: SF200XP0

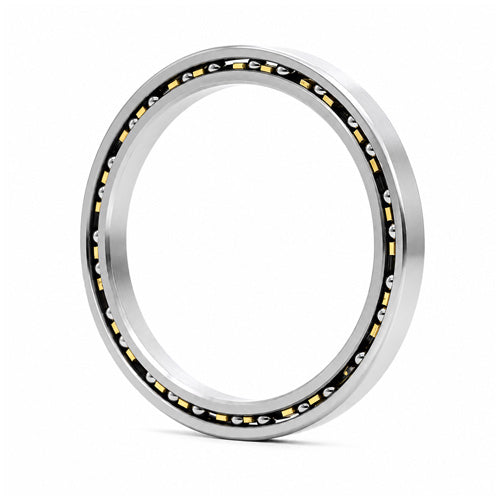

Silverthin SF200XP0 Thin Section Four Point Contact Ball Bearing 20x21.5x0.75 inch - Allow 7-10 Days
Silverthin SF200XP0 Thin Section Four Point Contact Ball Bearing 20x21.5x0.75 inch - Allow 7-10 Days
Equivalent to: KF200XP0
Out of stock
Description
Description
|
Silverthin Thin Section Four-Point Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with gothic arch raceways creating four contact points between the balls and the raceways. This design is excellent for moment loading and reversing axial loading. These bearings can be used for other light loading conditions but is not recommended for pure radial loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal of moment loading, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 508mm = 20 inch
- Outside Diameter:
- 546.1mm = 21-1/2 inch
- Width:
- 19.05mm = 3/4 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| B | 20 inch |
|---|---|
| D | 21.5 inch |
| Width | 0.75 inch |
| L1 | 20.555 inch |
| L2 | 20.945 inch |
| L3 | 21.092 inch |
| Static Radial Load | 104.182 kN |
| Dynamic Radial Load | 32.485 kN |
| Static Thrust Load | 260.448 kN |
| Dynamic Thrust Load | 81.193 kN |
| Static Moment Load | 1080.927 kN |
| Dynamic Moment Load | 336.868 kN |
| Weight | 4.037kg |
