SKU: SF1.1/4DECR-RHP

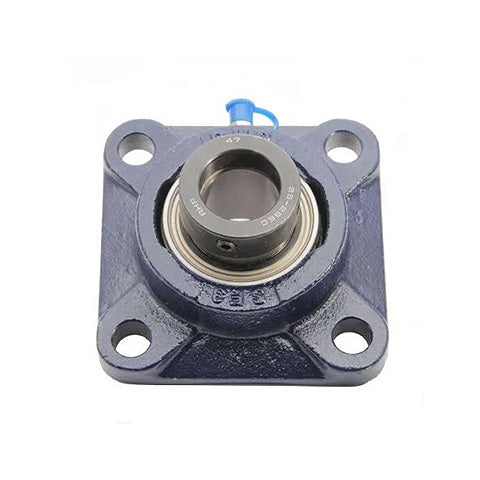

RHP SF1-1/4DECR Four Bolt Square Cast Iron Flange Housing and 1-1/4 inch Bore Eccentric Collar Full Width Insert
RHP SF1-1/4DECR Four Bolt Square Cast Iron Flange Housing and 1-1/4 inch Bore Eccentric Collar Full Width Insert
Out of stock
Share this product
Description
Description
|
RHP SF DEC Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- SF
- Bolt Hole Centres:
- 82.5mm = 3.248 inch
Technical
Technical
| Bore | 1-1/4 inch |
|---|---|
| L | 4.252 inch |
| H | 3.252 inch |
| J | 3.248 inch |
| G | 0.4375 inch |
| A | 1.173 inch |
| A3 | 1.972 inch |
| A4 | 0.5 inch |
| B3 | 1.906 inch |
| s2 | 0.721 inch |
| d2 | 1.75 inch |
| Dynamic load Cr | 19500 N |
| Static Load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-1-1/4DECG+insonly">1030-1-1/4DECG Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
