SKU: SF042XP0

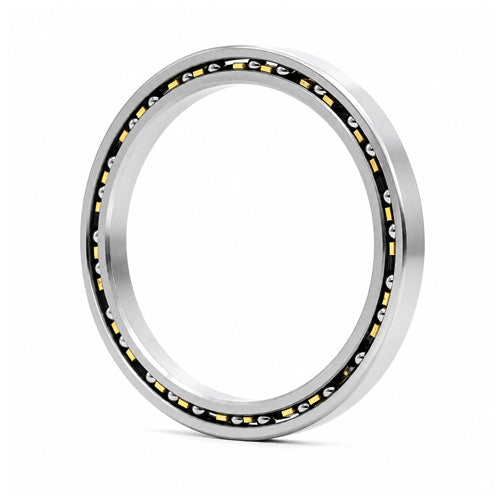

Silverthin SF042XP0 Thin Section Four Point Contact Ball Bearing 4.25x5.75x0.75 inch - Allow 7-10 Days
Silverthin SF042XP0 Thin Section Four Point Contact Ball Bearing 4.25x5.75x0.75 inch - Allow 7-10 Days
Equivalent to: KF042XP0
Out of stock
Description
Description
|
Silverthin Thin Section Four-Point Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with gothic arch raceways creating four contact points between the balls and the raceways. This design is excellent for moment loading and reversing axial loading. These bearings can be used for other light loading conditions but is not recommended for pure radial loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal of moment loading, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 107.95mm = 4-1/4 inch
- Outside Diameter:
- 146.05mm = 5-3/4 inch
- Width:
- 19.05mm = 3/4 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| B | 4.25 inch |
|---|---|
| D | 5.75 inch |
| Width | 0.75 inch |
| L1 | 4.805 inch |
| L2 | 5.195 inch |
| L3 | 5.365 inch |
| Static Radial Load | 25.11 kN |
| Dynamic Radial Load | 12.588 kN |
| Static Thrust Load | 62.769 kN |
| Dynamic Thrust Load | 31.462 kN |
| Static Moment Load | 62.804 kN |
| Dynamic Moment Load | 31.476 kN |
| Weight | 0.9072kg |
