SKU: SE509-SKF

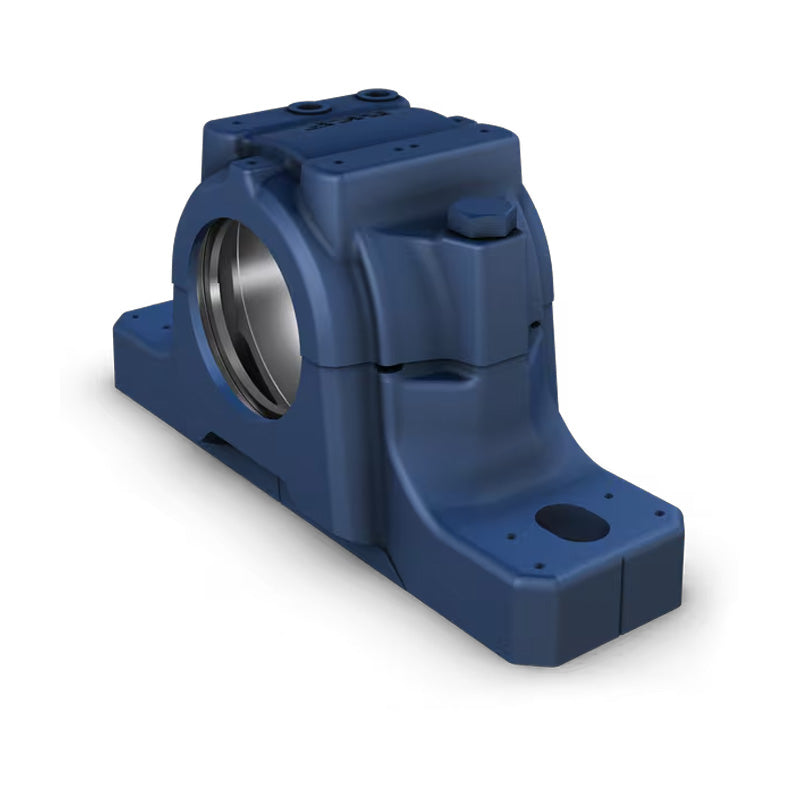

SKF SE509 Cast Iron Split Pillow Block Housing
SKF SE509 Cast Iron Split Pillow Block Housing
Regular price
CHF 71.00
ex VAT
Regular price
Sale price
CHF 71.00
ex VAT
Equivalent to: SNL509
In stock
Price Break
4+
CHF 56.62
9+
CHF 53.44
19+
CHF 52.80
29+
CHF 52.16
39+
CHF 51.53
49+
CHF 50.89
59+
CHF 47.71
69+
CHF 47.07
79+
CHF 46.44
89+
CHF 45.80
99+
CHF 44.53
Quantity
Couldn't load pickup availability
Description
Description
|
SKF SE Split Plummer Block Housings: SE plummer block housings are a new generation of the SNL plummer block housings. SE housings in series 2, 3, 5 & 6 supersede SNL housings in the 2, 3, 5, & 6 series from size 507-606 up to and including SE 515-612. These housings consist of a cap and base, and feature two holes as standard cast into the base for attachment bolts. Benefits: More robust compared to SNL housings, easy installation. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 169.86mm = 6.687 (6-11/16) inch
Technical
Technical

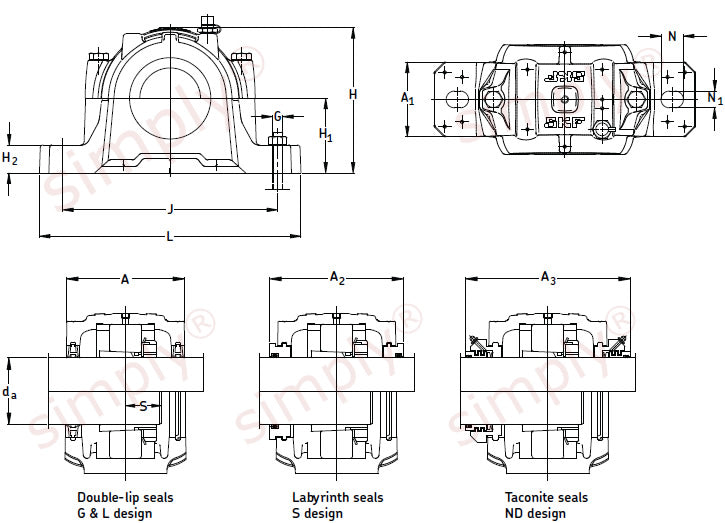

| da | 40mm |
|---|---|
| A | 3-3/8 inch = 85mm |
| A1 | 2-3/8 inch = 60mm |
| A2 | 3-13/16 inch = 97mm |
| A3 | 5-15/16 inch = 150mm |
| H | 4-5/16 inch = 109mm |
| H1 | 2.362 inch = 60mm |
| H2 | 1 inch = 25mm |
| J max | 6-7/8 inch = 175mm |
| J min | 6-1/2 inch = 165mm |
| J | 6-11/16 inch = 170mm |
| L | 8-1/8 inch = 205mm |
| N | 3/4 inch = 20mm |
| N1 | 5/8 inch = 15mm |
| G | 1/2 inch = 12mm |
| Weight | 3.38 kg |
