SKU: SD300XP0

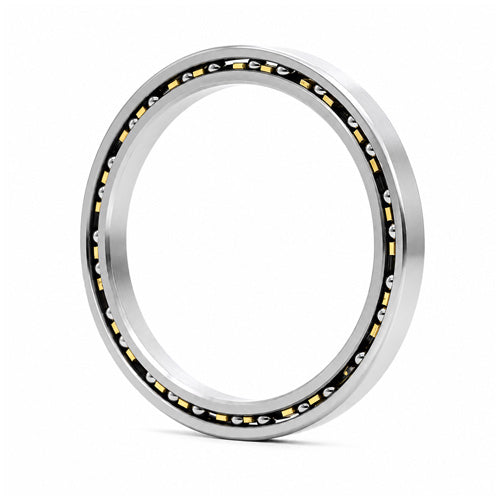

Silverthin SD300XP0 Thin Section Four Point Contact Ball Bearing 30x31x0.5 inch - Allow 7-10 Days
Silverthin SD300XP0 Thin Section Four Point Contact Ball Bearing 30x31x0.5 inch - Allow 7-10 Days
Equivalent to: KD300XP0
Out of stock
Description
Description
|
Silverthin Thin Section Four-Point Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with gothic arch raceways creating four contact points between the balls and the raceways. This design is excellent for moment loading and reversing axial loading. These bearings can be used for other light loading conditions but is not recommended for pure radial loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal of moment loading, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 762mm = 30 inch
- Outside Diameter:
- 787.4mm = 31 inch
- Width:
- 12.7mm = 1/2 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical

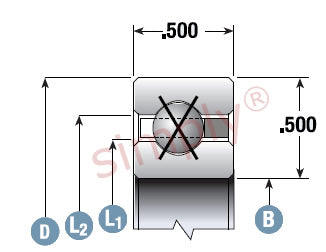

| B | 30 inch |
|---|---|
| D | 31 inch |
| Width | 0.5 inch |
| L1 | 30.37 inch |
| L2 | 30.63 inch |
| L3 | 30.672 inch |
| Static Radial Load | 92.799 kN |
| Dynamic Radial Load | 22.432 kN |
| Static Thrust Load | 232.028 kN |
| Dynamic Thrust Load | 56.065 kN |
| Static Moment Load | 1414.988 kN |
| Dynamic Moment Load | 341.81 kN |
| Weight | 2.5991kg |
