SKU: SCHB1.3/4-RHP

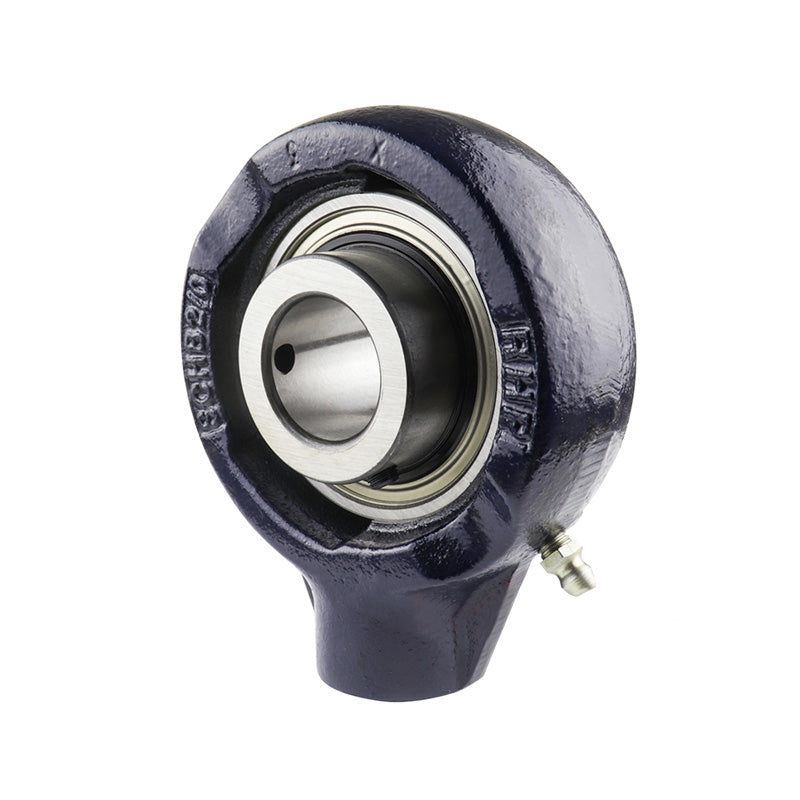

RHP SCHB1-3/4 BSP Thread Cast Iron Hanger Bearing Unit and 1-3/4 inch Bore Insert 121mm Outside Diameter
RHP SCHB1-3/4 BSP Thread Cast Iron Hanger Bearing Unit and 1-3/4 inch Bore Insert 121mm Outside Diameter
Regular price
CHF 130.00
ex VAT
Regular price
Sale price
CHF 130.00
ex VAT
In stock
Price Break
10+
CHF 103.72
20+
CHF 97.89
30+
CHF 96.72
40+
CHF 95.56
50+
CHF 94.39
75+
CHF 93.23
100+
CHF 87.40
200+
CHF 86.24
250+
CHF 85.07
500+
CHF 83.90
1000+
CHF 81.57
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SCHB Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 121mm
- Style:
- SCHB

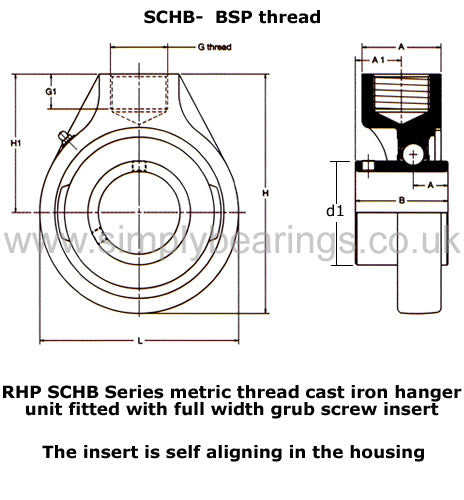

Technical
Technical
| Bore | 1-3/4 inch |
|---|---|
| G1 | 0.827 inch |
| L | 4.764 inch |
| H | 5.669 inch |
| H1 | 3.252 inch |
| Threads | 1 BSP |
| A | 1.87 inch |
| A1 | 1.094 inch |
| B | 2.031 inch |
| s | 0.752 inch |
| d1 | 2.449 inch |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-1-3/4G+insonly">1050-1-3/4G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
