SKU: SCH12-RHP

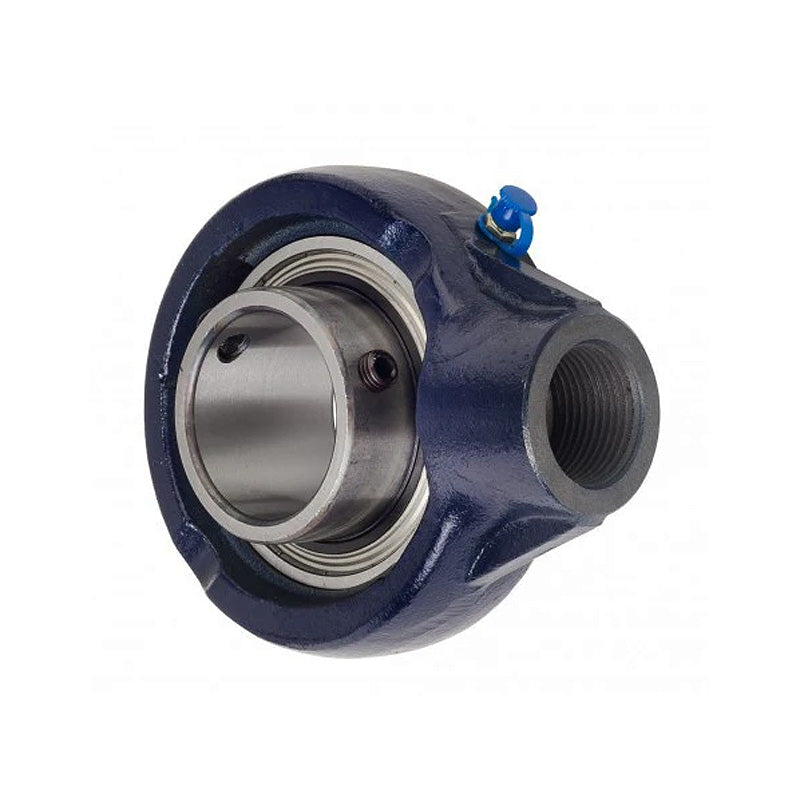

RHP SCH12 Metric Thread Cast Iron Hanger Bearing Unit and 12mm Bore Insert 57.5mm Outside Diameter
RHP SCH12 Metric Thread Cast Iron Hanger Bearing Unit and 12mm Bore Insert 57.5mm Outside Diameter
Out of stock
Share this product
Description
Description
|
RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 57.5mm
- Style:
- SCH
Technical
Technical
| Bore | 12mm |
|---|---|
| G1 | 19mm |
| L | 57.5mm |
| H | 83mm |
| H1 | 53.5mm |
| Threads | M16X2 Metric |
| A | 30mm |
| A1 | 15.88mm |
| B | 27.38mm |
| s | 11.55mm |
| d1 | 24.21mm |
| Dynamic load Cr | 7300 N |
| Static load Cor | 4760 N |
| Rec max speed | 8800 rpm |
| Weight | 0.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1017-12G+insonly">1017-12G Click Here</a> |
| Casting group | 0/1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
