SKU: SCH1-RHP

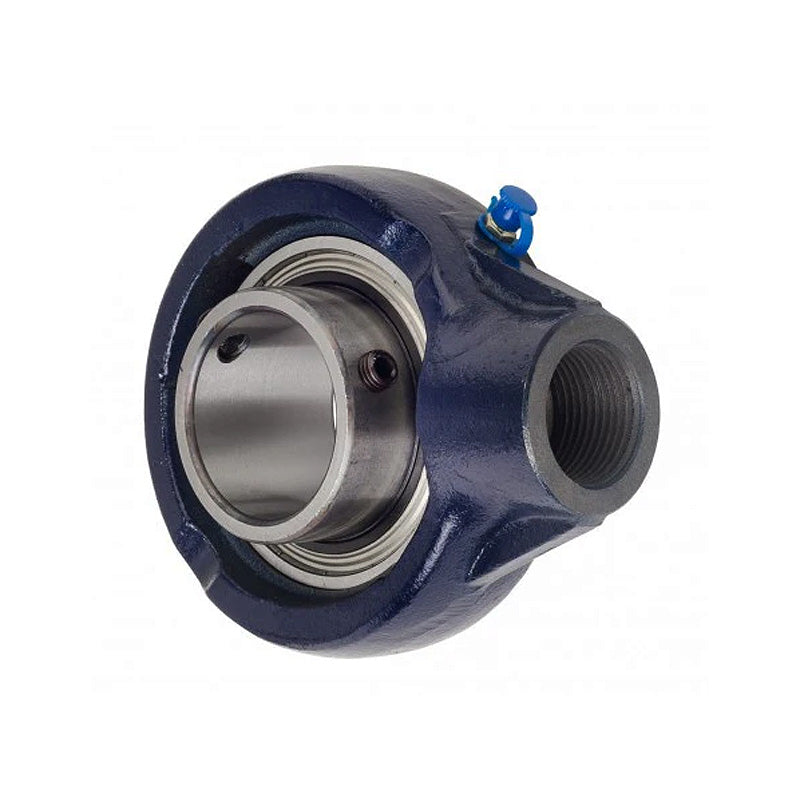

RHP SCH1 Metric Thread Cast Iron Hanger Bearing Unit and 1 inch Bore Insert 89mm Outside Diameter
RHP SCH1 Metric Thread Cast Iron Hanger Bearing Unit and 1 inch Bore Insert 89mm Outside Diameter
Regular price
CHF 71.00
ex VAT
Regular price
Sale price
CHF 71.00
ex VAT
In stock
Price Break
10+
CHF 56.82
20+
CHF 53.63
30+
CHF 52.99
40+
CHF 52.35
50+
CHF 51.71
75+
CHF 51.07
100+
CHF 47.88
200+
CHF 47.24
250+
CHF 46.60
500+
CHF 45.97
1000+
CHF 44.69
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 89mm
- Style:
- SCH

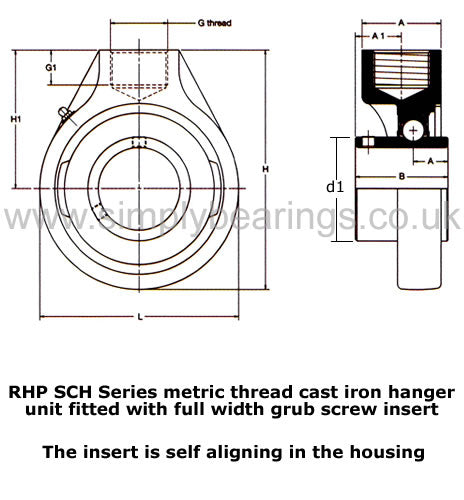

Technical
Technical
| Bore | 1 inch |
|---|---|
| G1 | 0.63 inch |
| L | 3.504 inch |
| H | 4.232 inch |
| H1 | 2.437 inch |
| Threads | M20X2.5 Metric |
| A | 1.319 inch |
| A1 | 0.875 inch |
| B | 1.5 inch |
| s | 0.627 inch |
| d1 | 1.575 inch |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-1G+insonly">1030-1G Click Here</a> |
| Casting group | 2/0 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
