SKU: SC14M3304X125

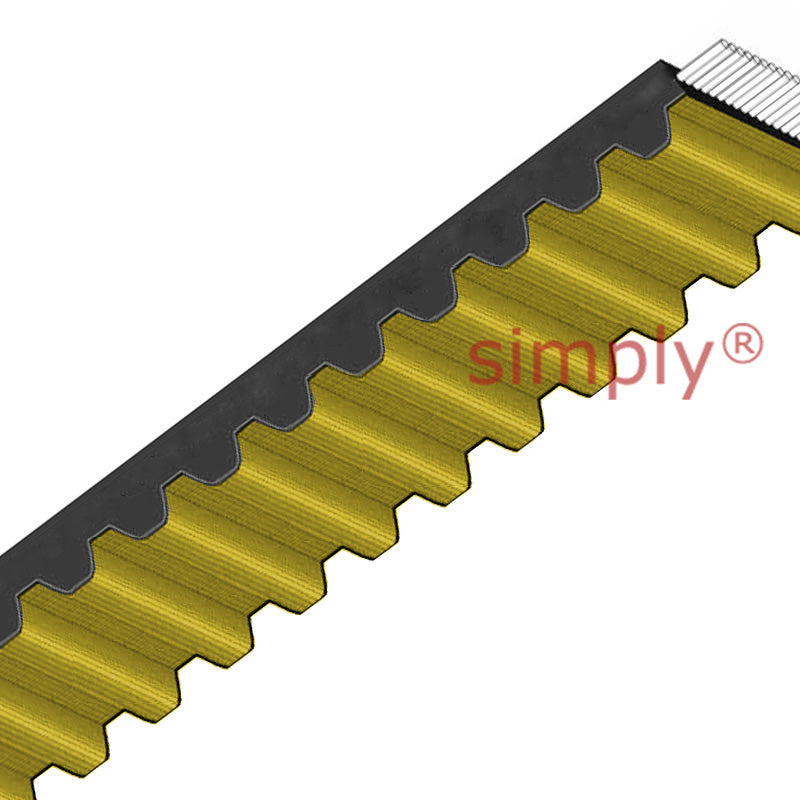

ContiTech SC14M3304X125 Synchrochain Timing Belt 125mm Width 3304mm Length 236 Teeth

Name: ContiTech SC14M3304X125 Synchrochain Timing Belt 125mm Width 3304mm Length 236 Teeth
Brand: Simply Bearings Ltd - Ball Bearings, Oil Seals, O-rings, V-Belts, SKF
SKU: SC14M3304X125
Price: 2591.00 CHF
Availability: InStock

CHF 2,591.00 ex VAT

Sale Sold out

In stock

Price Break

3+ CHF 2,073.47

5+ CHF 1,956.98

9+ CHF 1,933.68

19+ CHF 1,910.39

49+ CHF 1,887.09

74+ CHF 1,863.79

99+ CHF 1,747.30

199+ CHF 1,724.01

249+ CHF 1,700.71

499+ CHF 1,677.41

999+ CHF 1,630.82

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

6NZQP2VMVN

Brand / Quality:: ContiTech - High Quality
Belt Width Approx:: 125mm
Belt Depth Approx:: 10mm
Belt Length Approx:: 3304mm
Number of Teeth:: 236

Technical

Number of Teeth	236
Belt Length	3304mm
Belt Width	125mm
Tooth Pitch t	14mm
Belt Depth B1	10mm
Belt Depth B2	6.1mm
Temperature Range	-40 to 80 Deg C
Dynamic Stressing Range	Up to 40 m/s
Permissible Peripheral Force for Dynamic Applications	22180 N
Permissible Peripheral Force for Quasi-Static Applications (less than 100 rpm)	30000 N
Weight Kg	3.226 kg
