SKU: SC14M2380X68

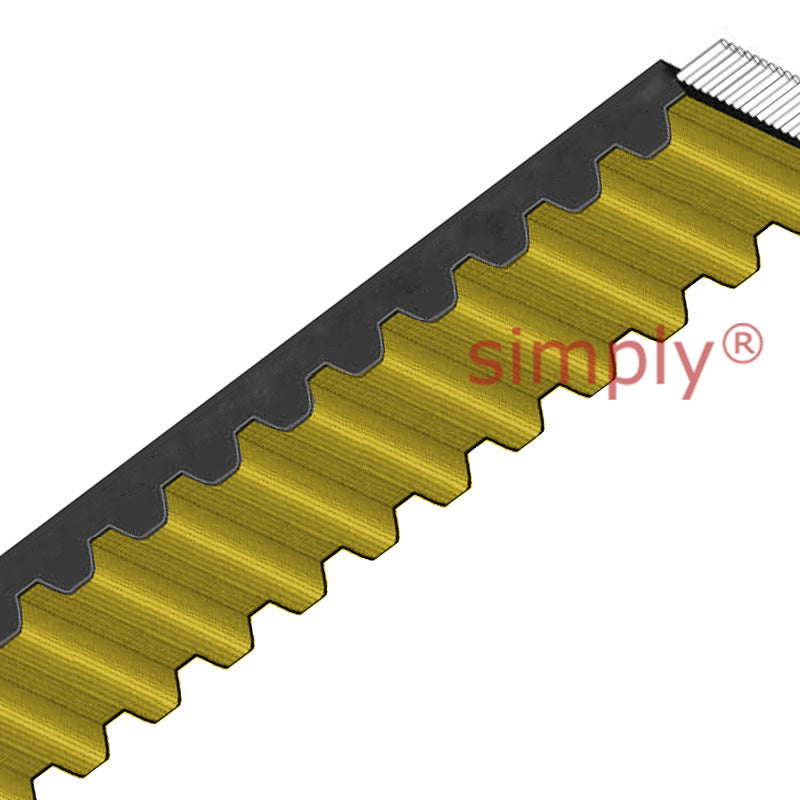

ContiTech SC14M2380X68 Synchrochain Timing Belt 68mm Width 2380mm Length 170 Teeth

Name: ContiTech SC14M2380X68 Synchrochain Timing Belt 68mm Width 2380mm Length 170 Teeth
Brand: Simply Bearings Ltd - Ball Bearings, Oil Seals, O-rings, V-Belts, SKF
SKU: SC14M2380X68
Price: 1072.00 CHF
Availability: InStock

CHF 1,072.00 ex VAT

Sale Sold out

In stock

Price Break

3+ CHF 857.26

5+ CHF 809.10

9+ CHF 799.47

19+ CHF 789.84

49+ CHF 780.20

74+ CHF 770.57

99+ CHF 722.41

199+ CHF 712.78

249+ CHF 703.15

499+ CHF 693.51

999+ CHF 674.25

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

6NZQP2VMVN

Brand / Quality:: ContiTech - High Quality
Belt Width Approx:: 68mm
Belt Depth Approx:: 10mm
Belt Length Approx:: 2380mm
Number of Teeth:: 170

Technical

Number of Teeth	170
Belt Length	2380mm
Belt Width	68mm
Tooth Pitch t	14mm
Belt Depth B1	10mm
Belt Depth B2	6.1mm
Temperature Range	-40 to 80 Deg C
Dynamic Stressing Range	Up to 40 m/s
Permissible Peripheral Force for Dynamic Applications	12090 N
Permissible Peripheral Force for Quasi-Static Applications (less than 100 rpm)	16300 N
Weight Kg	1.264 kg
