SKU: SC14M2380X37

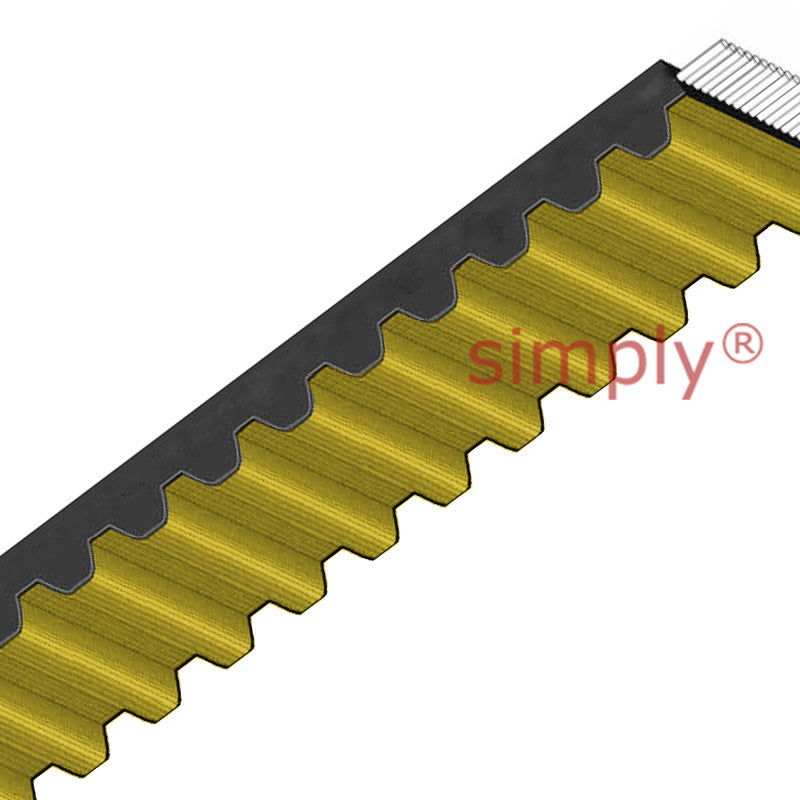

ContiTech SC14M2380X37 Synchrochain Timing Belt 37mm Width 2380mm Length 170 Teeth

Name: ContiTech SC14M2380X37 Synchrochain Timing Belt 37mm Width 2380mm Length 170 Teeth
Brand: Simply Bearings Ltd - Ball Bearings, Oil Seals, O-rings, V-Belts, SKF
SKU: SC14M2380X37
Price: 582.00 CHF
Availability: InStock

CHF 582.00 ex VAT

Sale Sold out

In stock

Price Break

3+ CHF 465.33

5+ CHF 439.19

9+ CHF 433.96

19+ CHF 428.73

49+ CHF 423.50

74+ CHF 418.27

99+ CHF 392.13

199+ CHF 386.90

249+ CHF 381.67

499+ CHF 376.45

999+ CHF 365.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

6NZQP2VMVN

Brand / Quality:: ContiTech - High Quality
Belt Width Approx:: 37mm
Belt Depth Approx:: 10mm
Belt Length Approx:: 2380mm
Number of Teeth:: 170

Technical

Number of Teeth	170
Belt Length	2380mm
Belt Width	37mm
Tooth Pitch t	14mm
Belt Depth B1	10mm
Belt Depth B2	6.1mm
Temperature Range	-40 to 80 Deg C
Dynamic Stressing Range	Up to 40 m/s
Permissible Peripheral Force for Dynamic Applications	6600 N
Permissible Peripheral Force for Quasi-Static Applications (less than 100 rpm)	8800 N
Weight Kg	0.688 kg
