SKU: SBPFT202-9.TRI

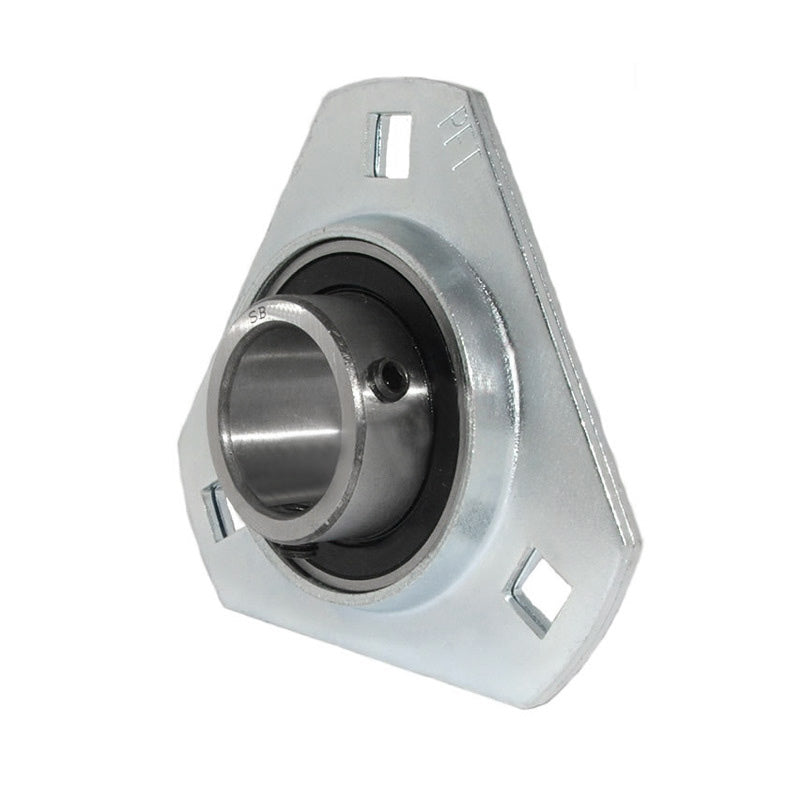

SBPFT202-9 Pressed Steel 3 Bolt Triangle Flange Housing with 9/16 inch insert
SBPFT202-9 Pressed Steel 3 Bolt Triangle Flange Housing with 9/16 inch insert
Equivalent to: SLFT9/16
Out of stock
Description
Description
|
3 Bolt Triangular Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium-duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost-effective bearing/housing assembly, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 14.29mm = 0.563 (9/16) inch
- Style:
- SBPFT
- Pitch Circle Diameter:
- 63.5mm
Technical
Technical

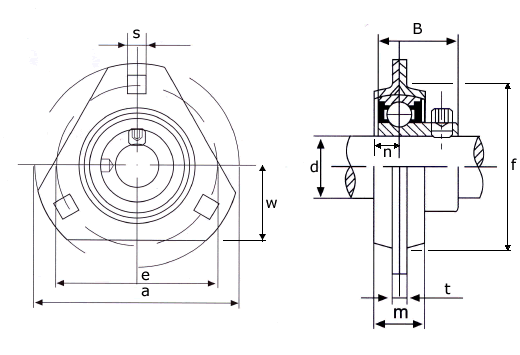

| d | 9/16 inch |
|---|---|
| a | 81mm |
| e | 63.5mm |
| w | 28.5mm |
| m | 14mm |
| s | 7.1mm |
| t | 4mm |
| f | 49mm |
| B | 22mm |
| n | 6mm |
| Bolt | 1/4 inch |
| Weight | 0.23 kg |
| Dynamic load | 760 N |
| Static load | 450 N |
