SKU: SB200AR0

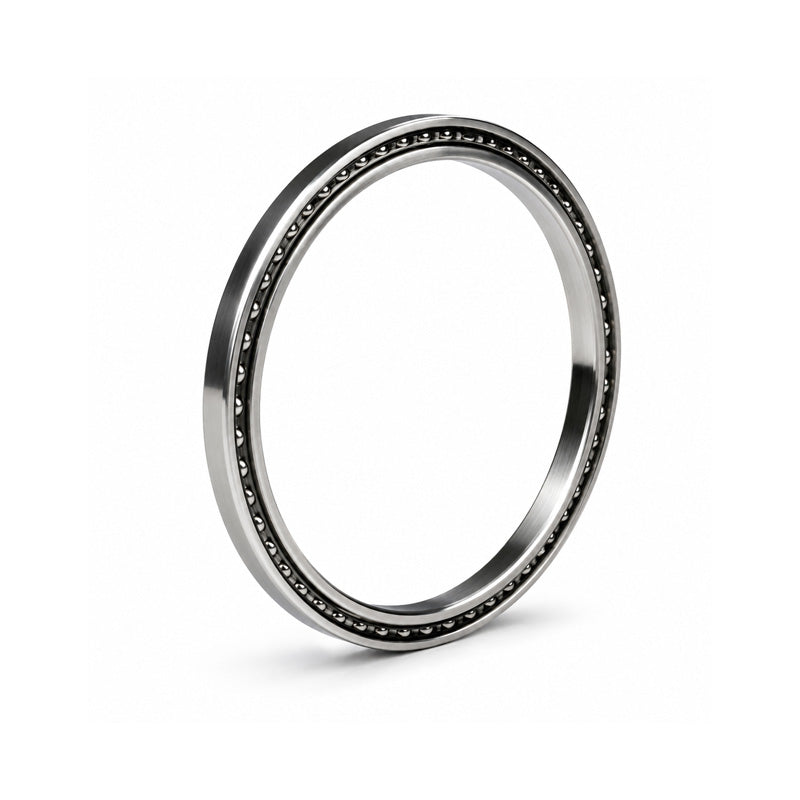

Silverthin SB200AR0 Thin Section Angular Contact Ball Bearing 20x20.625x0.312 inch - Allow 7-10 Days
Silverthin SB200AR0 Thin Section Angular Contact Ball Bearing 20x20.625x0.312 inch - Allow 7-10 Days
Equivalent to: KB200AR0
Out of stock
Description
Description
|
Silverthin Thin Section Angular Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed to accommodate axial loads. These bearing also support moment loads and reversing axial loads when used in pairs. These bearings also work well in radial or combined radial-thrust applications. Made from 52100 chrome steel and contains a brass circular pocket separator. Benefits: Compact, lightweight, accommodates radial and axial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 508mm = 20 inch
- Outside Diameter:
- 523.88mm = 20-5/8 inch
- Width:
- 7.94mm = 5/16 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| B | 20 inch |
|---|---|
| D | 20.625 inch |
| Width | 0.312 inch |
| L1 | 20.231 inch |
| L2 | 20.393 inch |
| L3 | 20.416 inch |
| Static Radial Load | 42.761 kN |
| Dynamic Radial Load | 9.128 kN |
| Static Thrust Load | 123.354 kN |
| Dynamic Thrust Load | 26.258 kN |
| Weight | 0.6804kg |
