SKU: SB110XP0

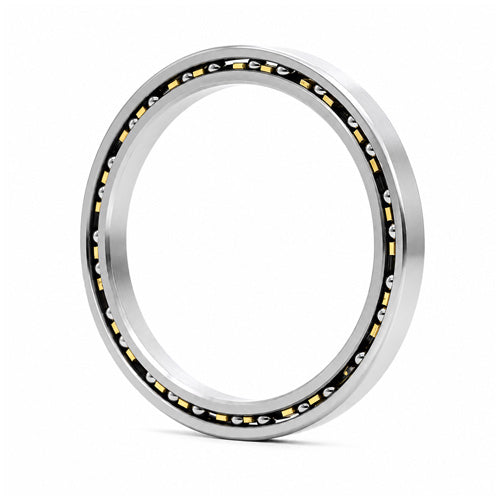

Silverthin SB110XP0 Thin Section Four Point Contact Ball Bearing 11x11.625x0.312 inch - Allow 7-10 Days
Silverthin SB110XP0 Thin Section Four Point Contact Ball Bearing 11x11.625x0.312 inch - Allow 7-10 Days
Equivalent to: KB110XP0
Out of stock
Description
Description
|
Silverthin Thin Section Four-Point Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with gothic arch raceways creating four contact points between the balls and the raceways. This design is excellent for moment loading and reversing axial loading. These bearings can be used for other light loading conditions but is not recommended for pure radial loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal of moment loading, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 279.4mm = 11 inch
- Outside Diameter:
- 295.28mm = 11-5/8 inch
- Width:
- 7.94mm = 5/16 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| B | 11 inch |
|---|---|
| D | 11.625 inch |
| Width | 0.312 inch |
| L1 | 11.231 inch |
| L2 | 11.393 inch |
| L3 | 11.447 inch |
| Static Radial Load | 20.435 kN |
| Dynamic Radial Load | 5.858 kN |
| Static Thrust Load | 51.074 kN |
| Dynamic Thrust Load | 14.595 kN |
| Static Moment Load | 115.543 kN |
| Dynamic Moment Load | 33.006 kN |
| Weight | 0.3402kg |
