SKU: SB.210-34

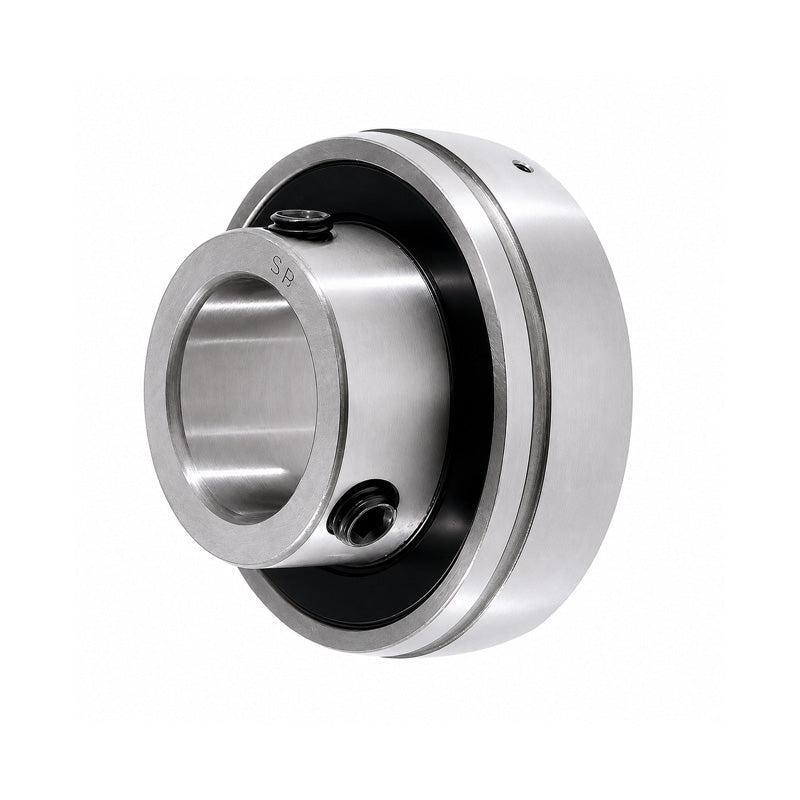

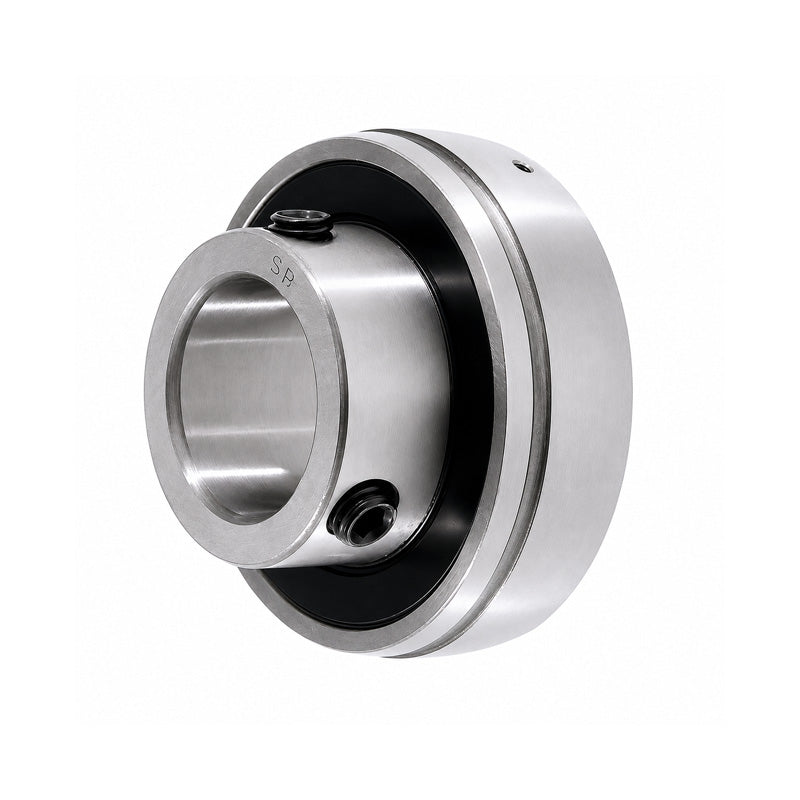

SB210-34 Imperial Bearing Insert with 1-13/16 inch Bore 90mm Outside Dia
SB210-34 Imperial Bearing Insert with 1-13/16 inch Bore 90mm Outside Dia
Out of stock
Share this product
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 46.04mm = 1.813 (1-13/16) inch
- Outside Diameter:
- 90mm
- Style:
- SB
Technical
Technical
| d | 1-13/16 inch |
|---|---|
| Be | 20mm |
| D | 90mm |
| Bi | 41.6mm |
| n | 10mm |
| m | 31.6mm |
| G | 9.2mm |
| h | 6.5mm |
| Grub screw | 5/16-24 UNF |
| Weight | 0.83 kg |
| Dynamic load | 3580 kgf |
| Static load | 2300 kgf |
