SKU: SALKB16F-SKF

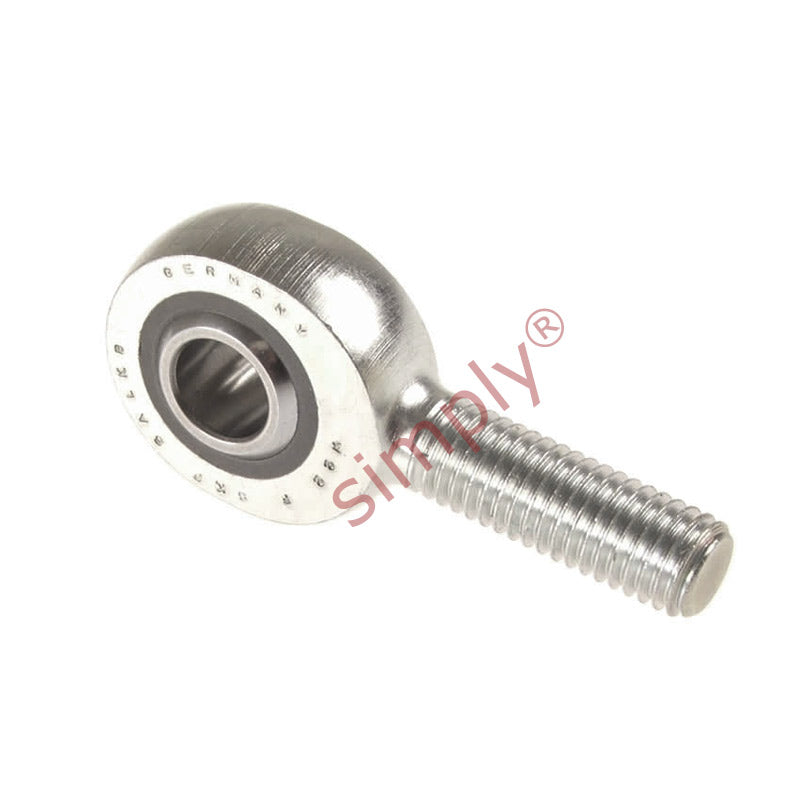

SKF SALKB16F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M16 Thread

Name: SKF SALKB16F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M16 Thread
Brand: SKF
SKU: SALKB16F-SKF
Price: 59.00 CHF
Availability: InStock

CHF 59.00 ex VAT

Sale Sold out

Equivalent to: MSL-M16

In stock

Price Break

10+ CHF 46.98

19+ CHF 44.34

29+ CHF 43.81

39+ CHF 43.28

49+ CHF 42.76

74+ CHF 42.23

99+ CHF 39.59

199+ CHF 39.06

249+ CHF 38.53

499+ CHF 38.00

999+ CHF 36.95

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Left Hand Thread Male Rod End: Maintenance-free rod ends with male, thread with sliding contact surface combination steel/PTFE composite.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE composite

Brand / Quality:: SKF - High Quality
Thread Size:: M16
Thread M / F:: Male
Thread Direction:: Left Hand
Inside Diameter:: 16mm
Material:: PTFE FRP Lined

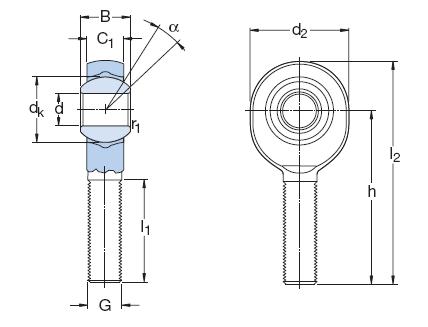

Technical

d	16mm
d2 max	43mm
G	M16
B	21mm
C1 max	15mm
h	66mm
a	15deg
Dynamic load C	21.4 kN
Static load Co	34.5 kN
Weight	0.2 kg
dk	28.5mm
l1 min	37mm
l2 max	89mm
r1 min	0.3mm
