SKU: SAFC2507/1-3/16-SKF

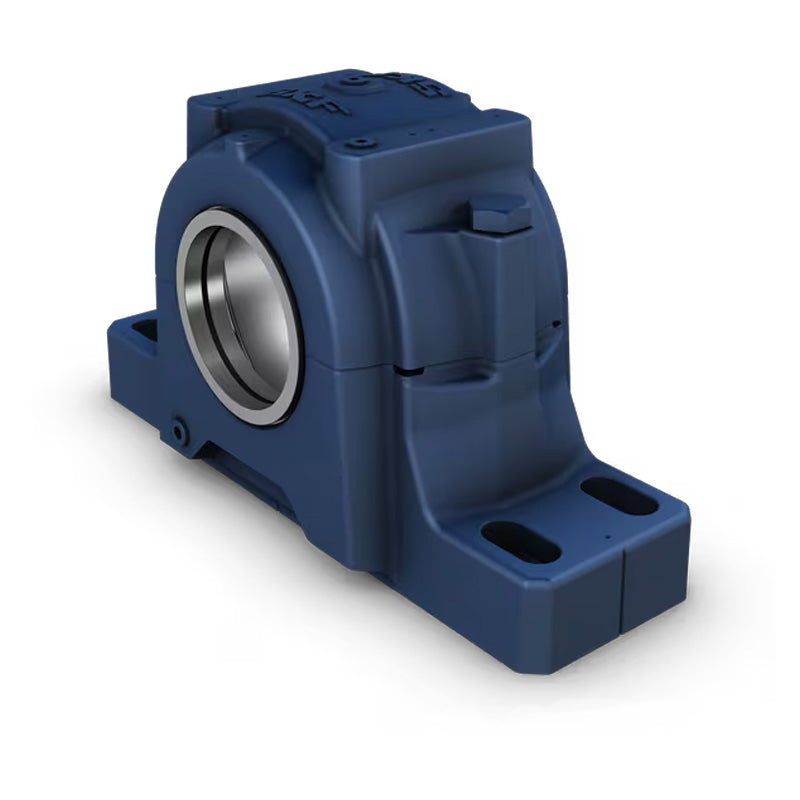

SKF SAFC2507/1-3/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAFC2507/1-3/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
Technical
Technical
| Housing | SAF507 |
|---|---|
| Triple Ring Seal | LER14 |
| Taconite Seal | TER14 |
| Bearing | C2207EK |
| Adaptor Sleeve | HA307E |
| Fixing Rings | 1 x 36053-6 |
| End Cover | EPR2 |
| da | 1-3/16 inch |
| A1 | 2 inch = 50.8mm |
| A2 | 3-1/4 inch = 82.6mm |
| H | 3-53/64 inch = 98.8mm |
| H1 | 2 inch = 50.8mm |
| H2 | 13/16 inch = 20.6mm |
| Static oil level H3 Roller bearing | 7/8 inch = 22mm |
| Static oil level H3 Ball bearing | 7/8 inch = 22mm |
| J max | 6-1/8 inch = 155.6mm |
| J min | 5-5/8 inch = 142.9mm |
| L | 7-1/2 inch = 190.5mm |
| X | 5/64 inch = 1.8mm |
| Bolts (required) G | (2) 3/8 inch = 10mm |
| Weight | 3.6 kg |
