SKU: SAF22513/2-3/16-SKF

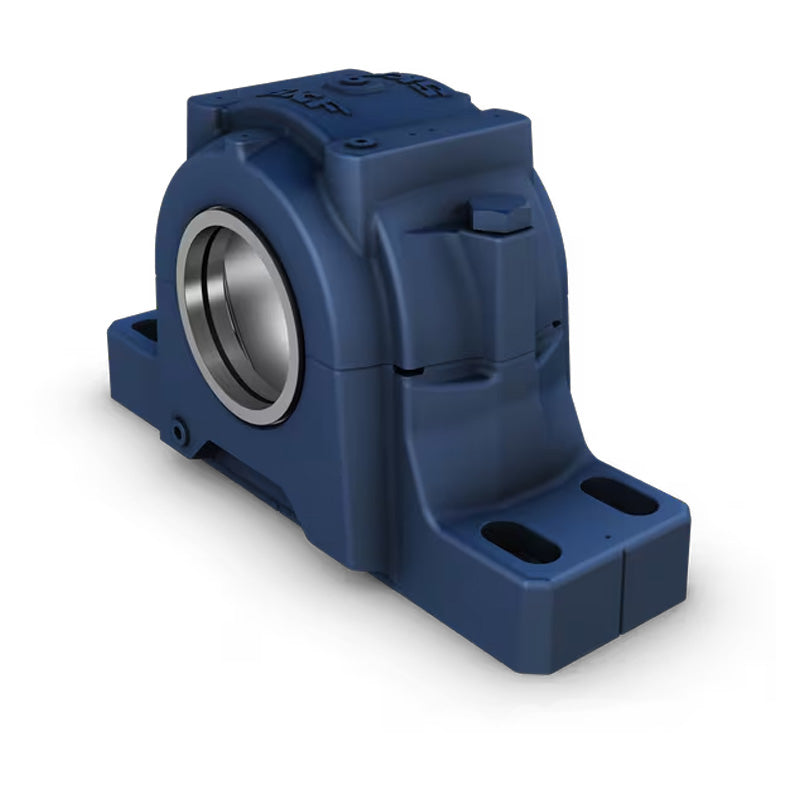

SKF SAF22513/2-3/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAF22513/2-3/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
Technical
Technical
| Housing | SAF513 |
|---|---|
| Triple Ring Seal | LER29 |
| Taconite Seal | TER29 |
| Bearing | 22213EK |
| Adaptor Sleeve | HA313 |
| Fixing Rings | 1 x SR13-0 |
| End Cover | EPR6 |
| da | 2-3/16 inch |
| A1 | 3-1/8 inch = 79.4mm |
| A2 | 4-1/2 inch = 114.3mm |
| A3 | 7-1/4 inch = 184.2mm |
| H | 5-13/16 inch = 147.7mm |
| H1 | 3 inch = 76.2mm |
| H2 | 1 inch = 25.4mm |
| Static oil level H3 Roller bearing | 1-3/32 inch = 27.8mm |
| Static oil level H3 Ball bearing | 1-3/16 inch = 30.2mm |
| J max | 9-1/2 inch = 241.3mm |
| J min | 8-1/8 inch = 206.4mm |
| L | 11 inch = 279.4mm |
| X | 0.157 inch = 3.99mm |
| Bolts (required) G | (2) 5/8 inch = 16mm |
| Weight | 9.5 kg |
