INA RSHEY20XLN Cast Iron Threaded Base Plummer Block Housing with Grub Screw Insert 20mm Bore
INA RSHEY20XLN Cast Iron Threaded Base Plummer Block Housing with Grub Screw Insert 20mm Bore
Regular price
CHF 39.00
ex VAT
Regular price
Sale price
CHF 39.00
ex VAT
In stock
Price Break
4+
CHF 30.51
9+
CHF 28.80
19+
CHF 28.45
29+
CHF 28.11
39+
CHF 27.77
49+
CHF 27.42
59+
CHF 25.71
69+
CHF 25.37
79+
CHF 25.02
89+
CHF 24.68
99+
CHF 24.00
Quantity
Couldn't load pickup availability
Description
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This cast iron housing is a single-piece unit with a high load carrying capacity and features a lubrication groove to facilitate relubrication of the bearing insert. This plummer block housing has a short base and is screw mounted to the adjacent construction by blind threaded holes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: High load carrying capacity, re-lubricatable, grub screw fixing, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Style:
- RSHEY
- Bolt Hole Centres:
- 50.8mm
Technical
Technical

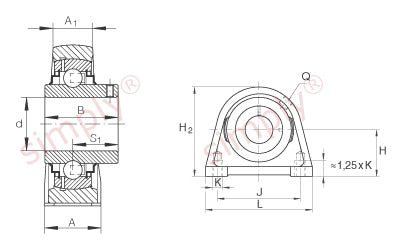

| d | 20mm |
|---|---|
| L | 65mm |
| H2 | 64mm |
| A | 32mm |
| A1 | 19mm |
| B | 31mm |
| H | 33.3mm |
| J | 50.8mm |
| K | M8 |
| Q | M6 |
| S1 | 18.3mm |
| Mass | 0.43 kg |
| Basic dynamic load rating Cr | 13600 N |
| Basic static load rating Cor | 6600 N |
| Designation of housing | SHE04 |
| Designation of bearing | GYE20-XL-KRR-B |
| Bearing end cap, closed design (to be ordered separately) | KASK04 |
