SKU: RNA69/32R-NTN

NTN RNA69/32R Machined Needle Roller Bearing no Shaft Sleeve 40x52x36mm

NTN RNA69/32R Machined Needle Roller Bearing no Shaft Sleeve 40x52x36mm
Regular price CHF 32.00 ex VAT
Regular price Sale price CHF 32.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 25.53
4+ CHF 24.09
9+ CHF 23.80
19+ CHF 23.52
49+ CHF 23.23
99+ CHF 22.94
499+ CHF 21.51
999+ CHF 21.22
1999+ CHF 20.94
2999+ CHF 20.65
4999+ CHF 20.08
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

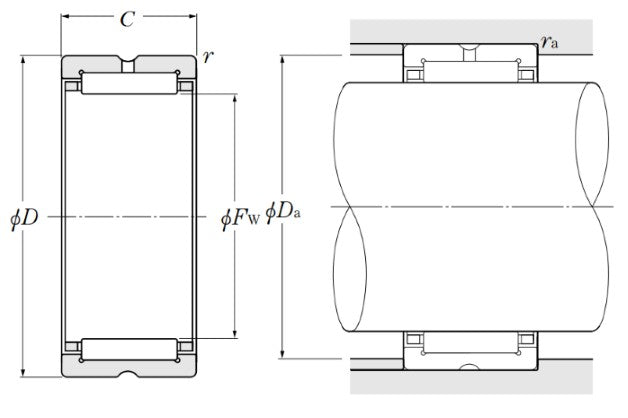

Fw - Under rollers diameter 40mm
D - Outside diameter 52mm
C - Width of bearing, drawn cup or outer ring 36mm
rs - Minimum fillet radius 0.6mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 47.5 kN
C0r - Static load rating 82 kN
N - Grease lubrication limit speed 6500 tr/min
N - Oil lubrication limit speed 10000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 48mm
ras max - Maximum shaft & housing fillet radius 0.6mm
