SKU: RNA4864-MB
Major Brand RNA4864 Needle Roller Bearing With Flanges without Shaft Sleeve 350x400x80mm
Major Brand RNA4864 Needle Roller Bearing With Flanges without Shaft Sleeve 350x400x80mm
Regular price
CHF 3,398.00
ex VAT
Regular price
Sale price
CHF 3,398.00
ex VAT
In stock
Price Break
10+
CHF 2,727.29
19+
CHF 2,574.07
29+
CHF 2,543.43
39+
CHF 2,512.78
49+
CHF 2,482.14
74+
CHF 2,451.50
99+
CHF 2,298.28
199+
CHF 2,267.63
249+
CHF 2,236.99
499+
CHF 2,206.35
999+
CHF 2,145.06
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 350mm
- Outside Diameter:
- 400mm
- Width:
- 80mm

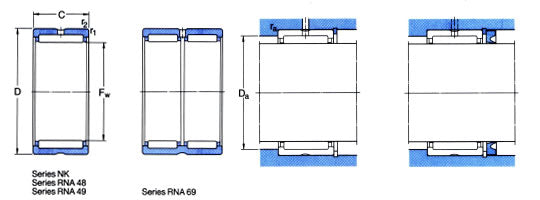

Technical
Technical
| Fw | 350mm |
|---|---|
| D | 400mm |
| C | 80mm |
| Dynamic load | 605000 N |
| Static load | 1900000 N |
| Fatigue load limit Pu | 176000 N |
| Speed in grease | 750 rpm |
| Speed in oil | 1100 rpm |
| r1r2 | 2.1mm |
| Da max | 389mm |
| ra max | 2mm |
| Seal | CR350x400x17HDS1R |
| Weight | 13500 g |
