SKU: RNA22/8.2RS-MB

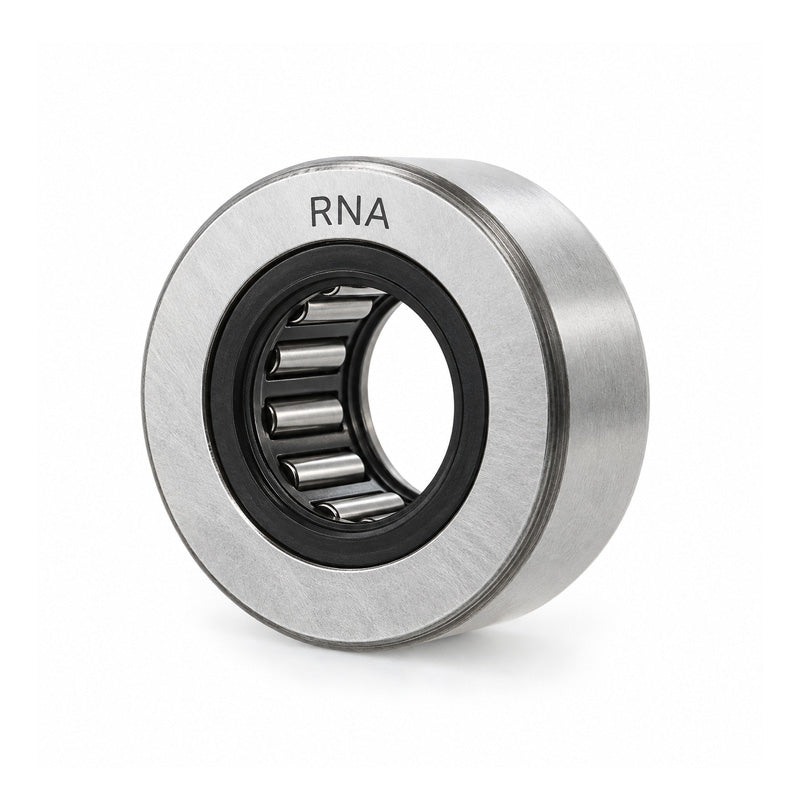

Major Brand RNA22/82RS Support Roller Without Axial Guidance Without Inner Sleeve 12x24x11.8mm
Major Brand RNA22/82RS Support Roller Without Axial Guidance Without Inner Sleeve 12x24x11.8mm
Regular price
CHF 17.00
ex VAT
Regular price
Sale price
CHF 17.00
ex VAT
In stock
Price Break
10+
CHF 13.58
19+
CHF 12.82
29+
CHF 12.67
39+
CHF 12.51
49+
CHF 12.36
74+
CHF 12.21
99+
CHF 11.45
199+
CHF 11.29
249+
CHF 11.14
499+
CHF 10.99
999+
CHF 10.68
Quantity
Couldn't load pickup availability
Description
Description
Support Rollers without Axial Guidance : Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers without inner rings are intended for arrangements where the pin or shaft can be hardened and ground. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 24mm
- Width:
- 11.8mm
Technical
Technical
| Fw | 12mm |
|---|---|
| D | 24mm |
| C | 11.8mm |
| D1 | 18mm |
| r min | 0.3mm |
| Speed rating | 7000 rpm |
| Dynamic load | 4460 N |
| Static load | 4400 N |
| Fatigue load limit Pu | 500 N |
| Min radial force dynamic load | 5000 N |
| Max radial force dynamic load | 7100 N |
| Weight | 29 g |
