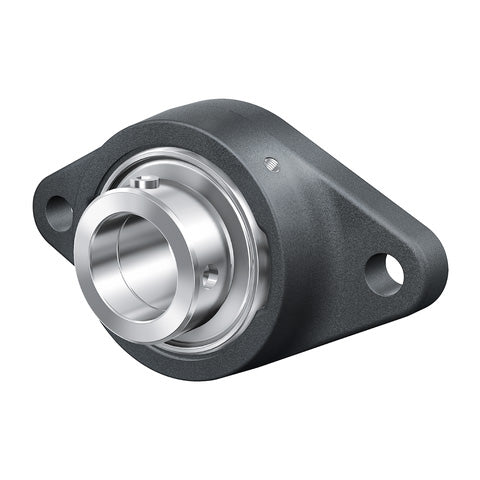

INA RCJTZ40XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 40mm Bore
INA RCJTZ40XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 40mm Bore
Regular price
CHF 92.00
ex VAT
Regular price
Sale price
CHF 92.00
ex VAT
In stock
Price Break
4+
CHF 73.05
9+
CHF 68.95
19+
CHF 68.13
29+
CHF 67.31
39+
CHF 66.48
49+
CHF 65.66
59+
CHF 61.56
69+
CHF 60.74
79+
CHF 59.92
89+
CHF 59.10
99+
CHF 57.46
Quantity
Couldn't load pickup availability
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes and a centring spigot. The centring spigot is mounted in a turned recess in the machine structure. This gives concentric alignment of the housings and relieves the fixing screws of any radial forces. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, centring spigot, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Style:
- RCJTZ
- Bolt Hole Centres:
- 143.5mm
Technical
Technical

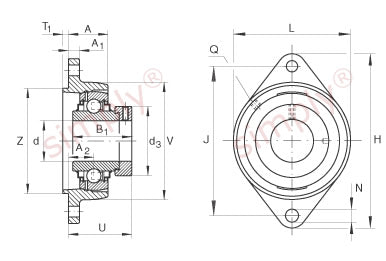

| d | 40mm |
|---|---|
| H | 172mm |
| U | 54.9mm |
| A | 30.5mm |
| A1 | 13mm |
| A2 | 20mm |
| B1 | 56.5mm |
| d3 max | 58mm |
| J | 143.5mm |
| L | 105mm |
| N | 14mm |
| Q | M6mm |
| T1 | 4mm |
| V | 105mm |
| Z | 100mm (Tolerance: h8) |
| Mass | 1.6 kg |
| Basic dynamic load rating Cr | 34500 N |
| Basic static load rating Cor | 19800 N |
| Designation of housing | CJTZ08 |
| Designation of bearing | GE40-XL-KRR-B |
