INA RCJTY30XLN Two Bolt Cast Iron Oval Housing with Grub Screw Insert 30mm Bore
INA RCJTY30XLN Two Bolt Cast Iron Oval Housing with Grub Screw Insert 30mm Bore
Regular price
CHF 46.00
ex VAT
Regular price
Sale price
CHF 46.00
ex VAT
In stock
Price Break
4+
CHF 36.48
9+
CHF 34.43
19+
CHF 34.02
29+
CHF 33.61
39+
CHF 33.20
49+
CHF 32.79
59+
CHF 30.74
69+
CHF 30.33
79+
CHF 29.92
89+
CHF 29.51
99+
CHF 28.69
Quantity
Couldn't load pickup availability
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, grub screw fixing, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Style:
- RCJTY
- Bolt Hole Centres:
- 116.5mm
Technical

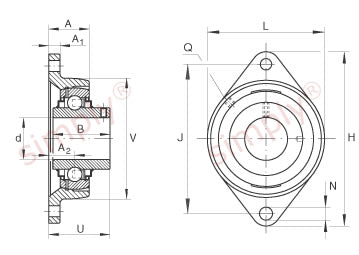

Technical
| d | 30mm |
|---|---|
| H | 142mm |
| U | 42.2mm |
| A | 29mm |
| A1 | 12mm |
| A2 | 20mm |
| B | 38.1mm |
| J | 116.5mm |
| L | 80mm |
| N | 11.5mm |
| Q | M6mm |
| V | 80mm |
| Mass | 0.88 kg |
| Basic dynamic load rating Cr | 20700 N |
| Basic static load rating Cor | 11300 N |
| Designation of housing | CJT06 |
| Designation of bearing | GYE30-XL-KRR-B |
| Bearing end cap, closed design (to be ordered separately) | KASK06 |
