SKU: RCJO70-XL-INA
INA RCJO70XL Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 70mm Bore
INA RCJO70XL Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 70mm Bore
Regular price
CHF 460.00
ex VAT
Regular price
Sale price
CHF 460.00
ex VAT
In stock
Price Break
4+
CHF 367.67
9+
CHF 347.01
19+
CHF 342.88
29+
CHF 338.75
39+
CHF 334.62
49+
CHF 330.49
59+
CHF 309.83
69+
CHF 305.70
79+
CHF 301.57
89+
CHF 297.44
99+
CHF 289.18
Quantity
Couldn't load pickup availability
Description
Description
|
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 70mm
- Style:
- RCJO
- Bolt Hole Centres:
- 178mm
Technical
Technical

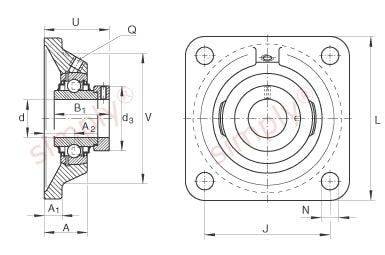

| d | 70mm |
|---|---|
| L | 226mm |
| U | 85.4mm |
| A | 54.5mm |
| A1 | 25mm |
| A2 | 36mm |
| B1 | 75.5mm |
| d3 max | 102mm |
| J | 178mm |
| N | 25mm |
| Q | M6 |
| V | 196mm |
| Mass | 10 kg |
| Basic dynamic load rating Cr | 111000 N |
| Basic static load rating Cor | 68000 N |
| Designation of housing | CJO14 |
| Designation of bearing | GNE70-XL-KRR-B |
