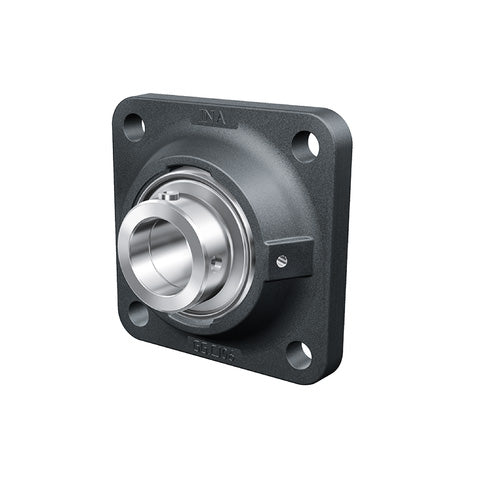

INA RCJ60XLN Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 60mm Bore
INA RCJ60XLN Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 60mm Bore
Regular price
CHF 164.00
ex VAT
Regular price
Sale price
CHF 164.00
ex VAT
In stock
Price Break
4+
CHF 130.47
9+
CHF 123.14
19+
CHF 121.67
29+
CHF 120.20
39+
CHF 118.74
49+
CHF 117.27
59+
CHF 109.94
69+
CHF 108.48
79+
CHF 107.01
89+
CHF 105.54
99+
CHF 102.61
Quantity
Couldn't load pickup availability
Description
Description
|
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 60mm
- Style:
- RCJ
- Bolt Hole Centres:
- 143mm
Technical
Technical
| d | 60mm |
|---|---|
| L | 175mm |
| U | 80.9mm |
| A | 46mm |
| A1 | 16mm |
| A2 | 34mm |
| B1 | 77.9mm |
| d3 max | 84mm |
| J | 143mm |
| N | 18mm |
| Q | M6 |
| V | 150mm |
| Mass | 4.21 kg |
| Basic dynamic load rating Cr | 56000 N |
| Basic static load rating Cor | 36000 N |
| Designation of housing | CJ12 |
| Designation of bearing | GE60-XL-KRR-BBearing end cap, closed design (to be ordered separately) |
| KASK12 | N/A |
