SKU: RCJ100-XL-INA

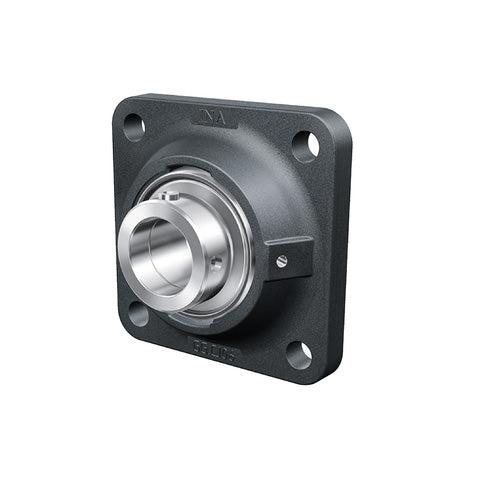

INA RCJ100XL Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 100mm Bore
INA RCJ100XL Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 100mm Bore
Regular price
CHF 826.00
ex VAT
Regular price
Sale price
CHF 826.00
ex VAT
In stock
Price Break
4+
CHF 660.38
9+
CHF 623.28
19+
CHF 615.86
29+
CHF 608.44
39+
CHF 601.02
49+
CHF 593.60
59+
CHF 556.50
69+
CHF 549.08
79+
CHF 541.66
89+
CHF 534.24
99+
CHF 519.40
Quantity
Couldn't load pickup availability
Description
Description
|
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 100mm
- Style:
- RCJ
- Bolt Hole Centres:
- 210mm
Technical
Technical
| d | 100mm |
|---|---|
| L | 265mm |
| U | 77.5mm |
| A | 46mm |
| A1 | 25mm |
| A2 | 28mm |
| B1 | 75mm |
| d3 max | 132mm |
| J | 210mm |
| N | 27mm |
| Q | M6 |
| V | 230mm |
| Mass | 12.25 kg |
| Basic dynamic load rating Cr | 130000 N |
| Basic static load rating Cor | 93000 N |
| Designation of housing | CJ20 |
| Designation of bearing | GE100-XL-KRR-B |
