SKU: RAX550-MB
Major Brand RAX 550 Needle Combined Bearing with Needle Thrust Cage 50x62x31mm Allow 2-3 Days
Major Brand RAX 550 Needle Combined Bearing with Needle Thrust Cage 50x62x31mm Allow 2-3 Days
Out of stock
Share this product
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 31mm
- Width:
- 62mm

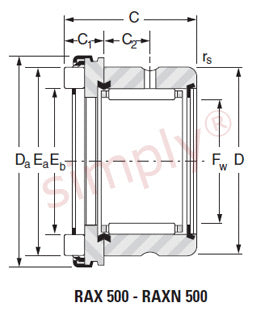

Technical
Technical
| Fw | 50mm |
|---|---|
| C | 31mm |
| D | 62mm |
| Da | 70.4mm |
| Eb | 52.8mm |
| Ea | 64.8mm |
| C1 | 10mm |
| C2 | 11mm |
| rs min | 1.3mm |
| Radial dynamic load | 30.2 kN |
| Radial static load | 68.5 kN |
| Axial dynamic load | 51 kN |
| Axial static load | 157 kN |
| Speed rating | 4000 rpm |
| Inner ring | JR 45x50x25 kN |
| Weight | 0.232 kg |
