SKU: RAX440-MB

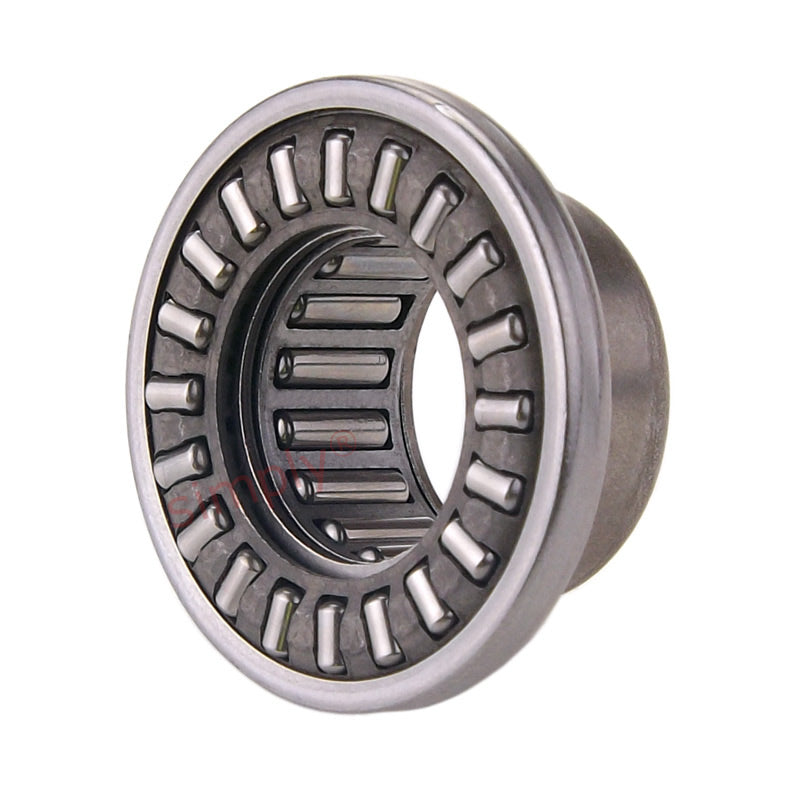

Major Brand RAX 440 Needle Combined Bearing with Needle Thrust Cage 40x52x24mm Allow 2-3 Days
Major Brand RAX 440 Needle Combined Bearing with Needle Thrust Cage 40x52x24mm Allow 2-3 Days
Regular price
CHF 245.00
ex VAT
Regular price
Sale price
CHF 245.00
ex VAT
In stock
Price Break
10+
CHF 195.67
19+
CHF 184.68
29+
CHF 182.48
39+
CHF 180.28
49+
CHF 178.08
74+
CHF 175.88
99+
CHF 164.89
199+
CHF 162.69
249+
CHF 160.49
499+
CHF 158.29
999+
CHF 153.90
Quantity
Couldn't load pickup availability
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 24mm
- Width:
- 52mm

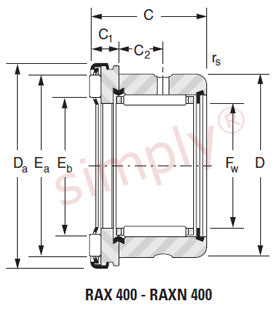

Technical
Technical
| Fw | 40mm |
|---|---|
| C | 24mm |
| D | 52mm |
| Da | 60mm |
| Eb | 43mm |
| Ea | 54.9mm |
| C1 | 6mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 23.8 kN |
| Radial static load | 47 kN |
| Axial dynamic load | 20.4 kN |
| Axial static load | 96 kN |
| Speed rating | 5000 rpm |
| Inner ring | JR 35x40x20 kN |
| Weight | 0.15 kg |
